Brake system
Brake lining kit
11.037.09235
NEOPLAN
SCANIA - Series 2
Linings, WVA number: 19647
Repair size, mm: 2 rem
Rivet type: L12
Diameter of a drum, mm: 413
Length, mm: 193
Quantity of rivets, pcs.: 96
Thickness, mm: 21.0
Width of a block, mm: 254

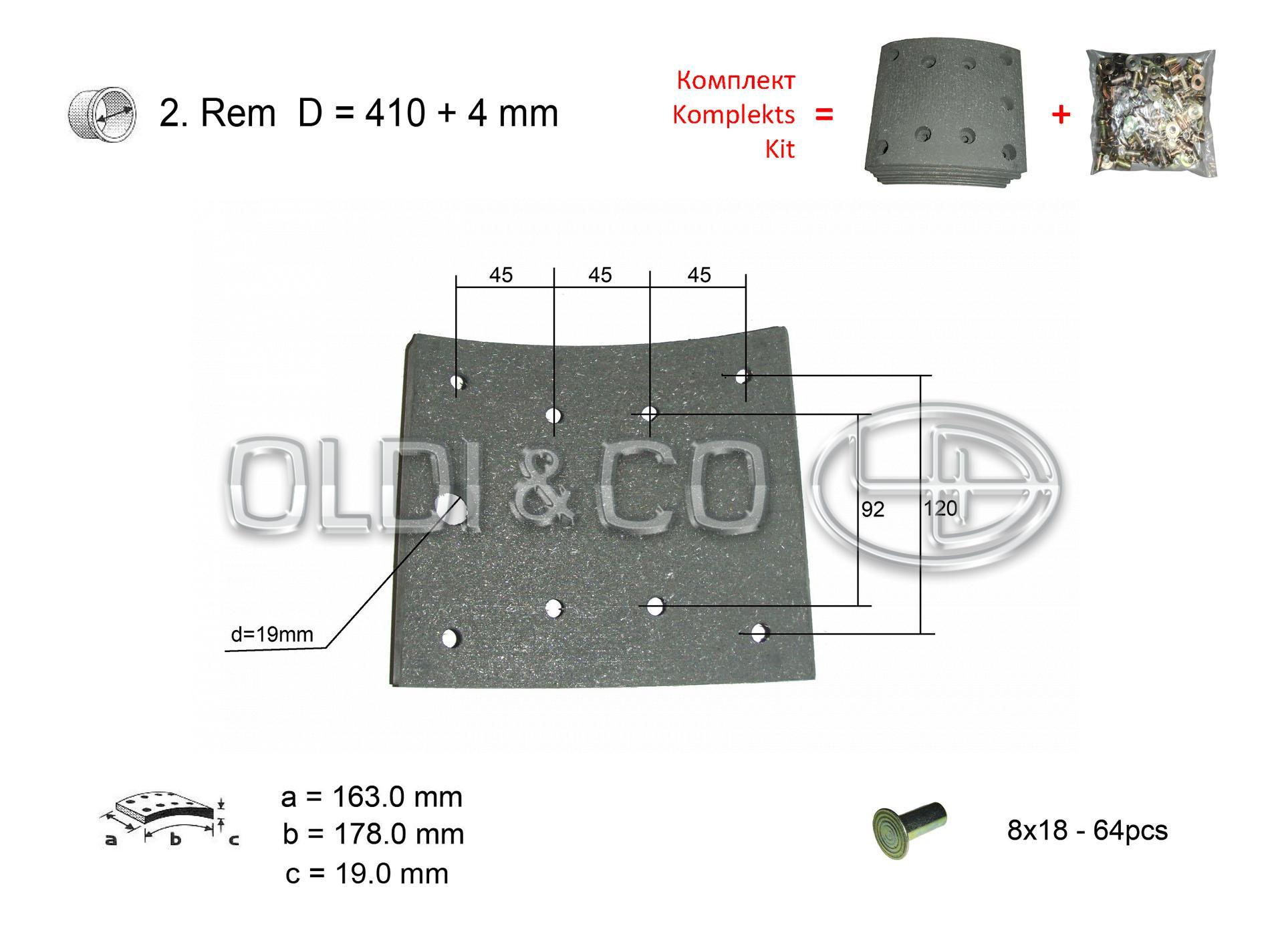

11.037.09237
MAN - F90, M90, BUS
MERCEDES - Series MK, Series NG, Series SK, ATEGO I
Linings, WVA number: 19486
Linings, WVA number: 19494
Repair size, mm: 2 rem
Rivet type: 8x18
Diameter of a drum, mm: 410
Length, mm: 178
Quantity of rivets, pcs.: 64
Thickness, mm: 19.0
Width of a block, mm: 163

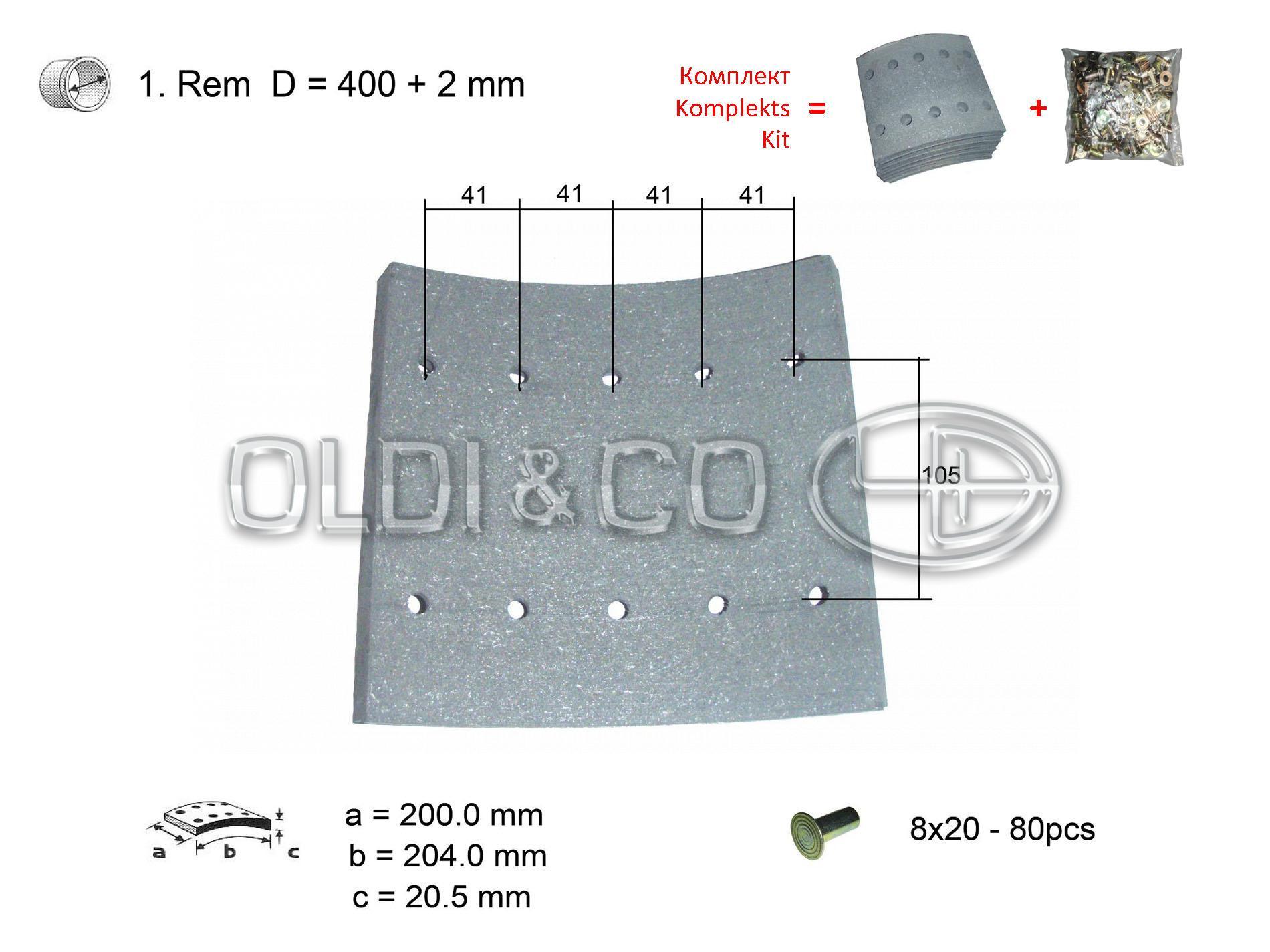

11.037.09238
KASSBOHRER
Linings, WVA number: 19166
Linings, WVA number: 19167
Repair size, mm: 1 rem
Rivet type: 8x20
Diameter of a drum, mm: 400
Length, mm: 204
Quantity of rivets, pcs.: 80
Thickness, mm: 20.5/20.4
Width of a block, mm: 200

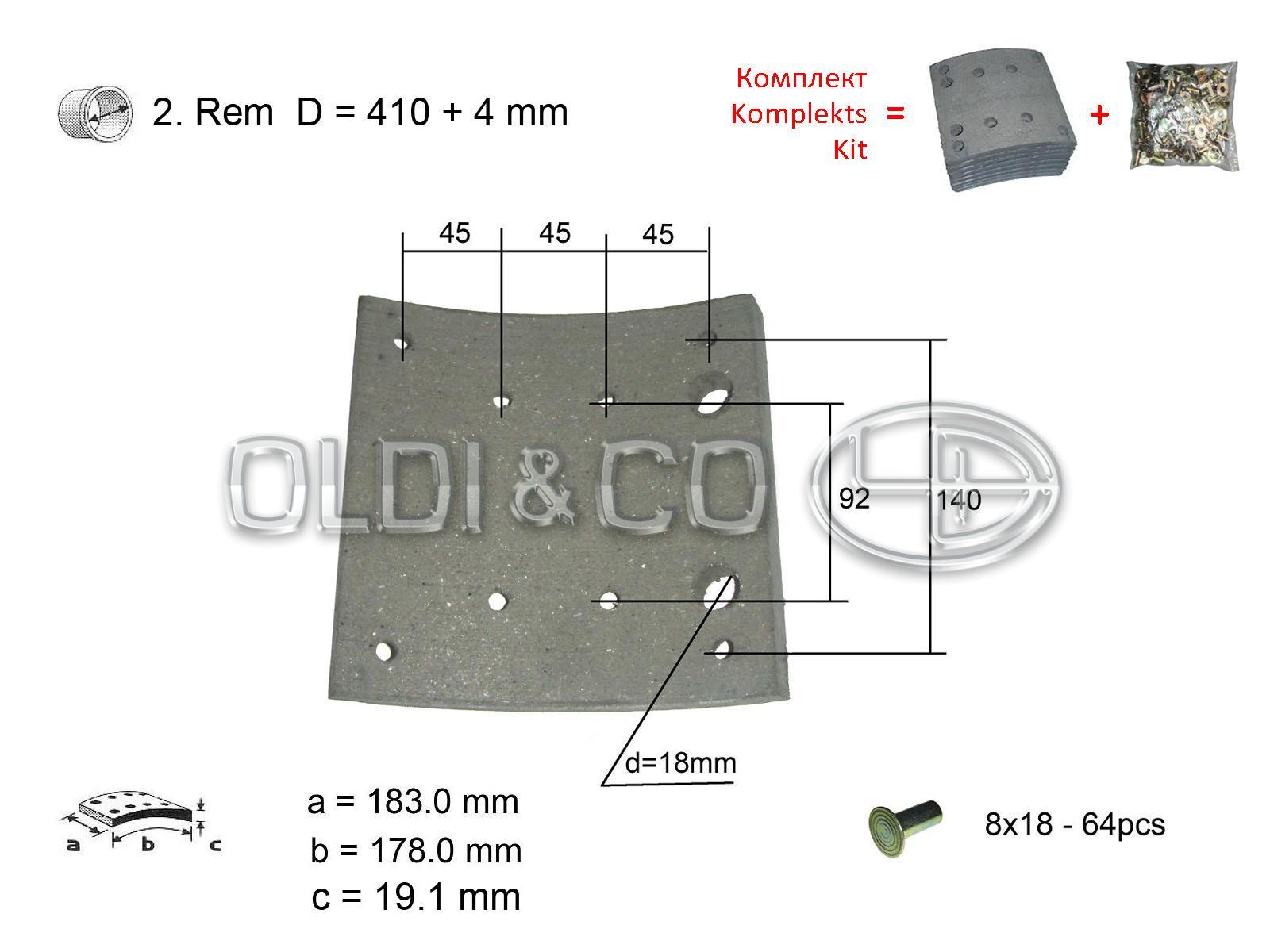

11.037.09239
MAN - Series F, Series M, TGA
MERCEDES - ACTROS I, ATEGO I, Series MK, Series NG, Series SK
Linings, WVA number: 19487
Repair size, mm: 2 rem
Rivet type: 8x18
Diameter of a drum, mm: 410
Length, mm: 178
Quantity of rivets, pcs.: 64
Thickness, mm: 19.0
Width of a block, mm: 183

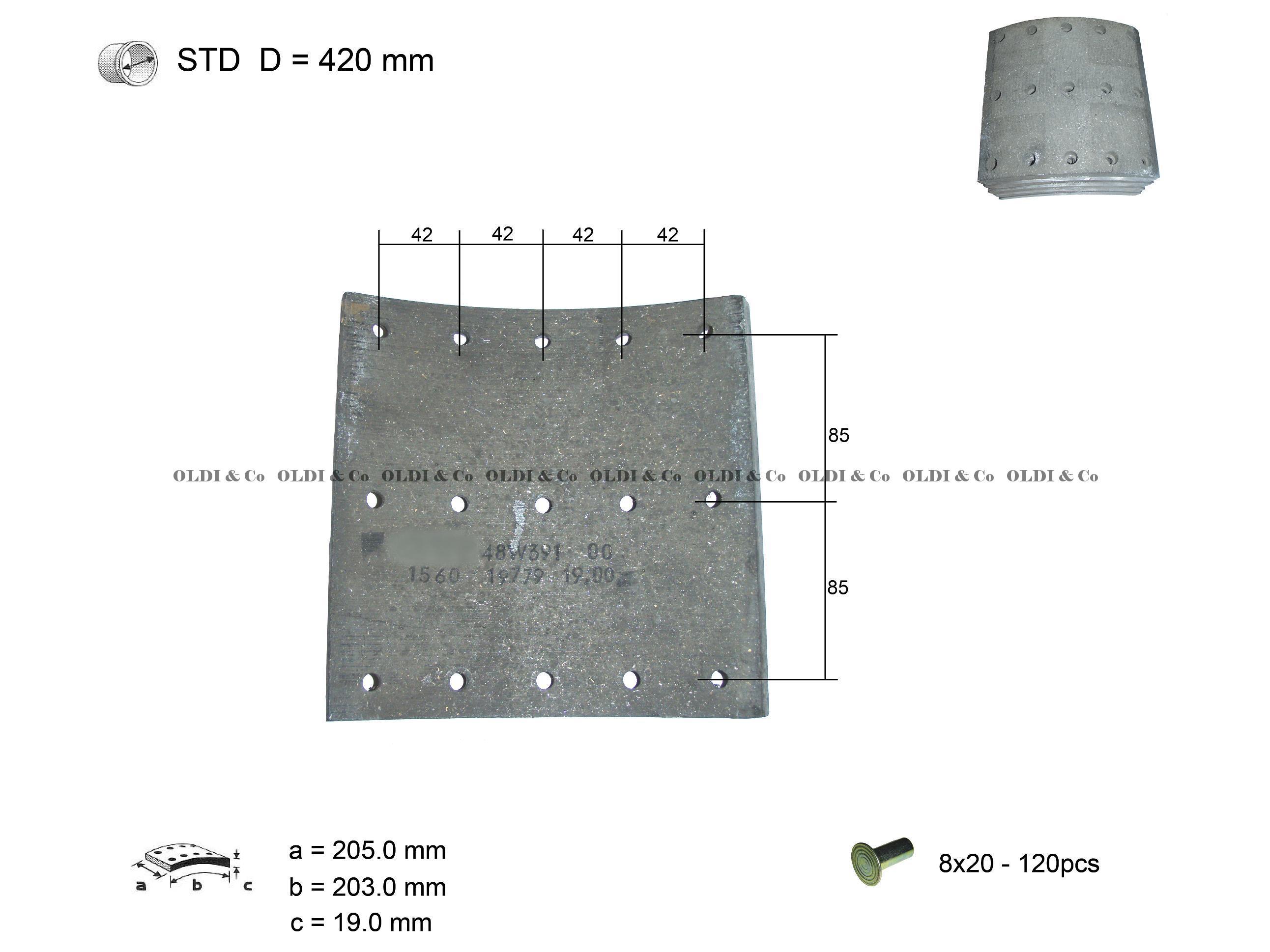

11.037.09241
Linings, WVA number: 19779
Repair size, mm: STD
Rivet type: 8x20
Diameter of a drum, mm: 420
Length, mm: 203
Quantity of rivets, pcs.: 120
Thickness, mm: 19.0
Width of a block, mm: 205

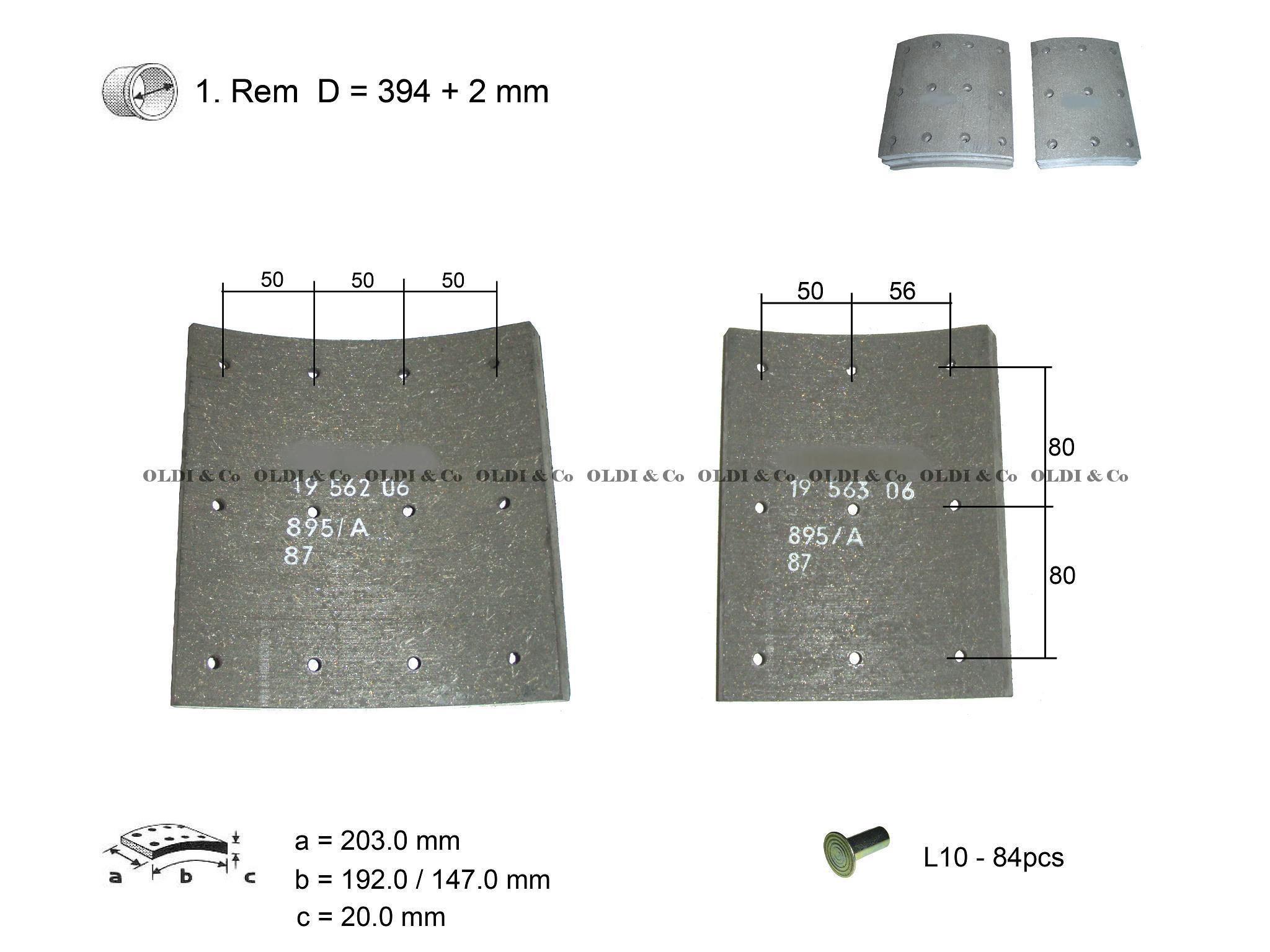

11.037.09243
VOLVO - F10, F12, F6/7, FS7, N, BUS
Repair size, mm: 1 rem
Rivet type: L10
Diameter of a drum, mm: 394
Length, mm: 192/147
Quantity of rivets, pcs.: 84
Thickness, mm: 20.0
Width of a block, mm: 203

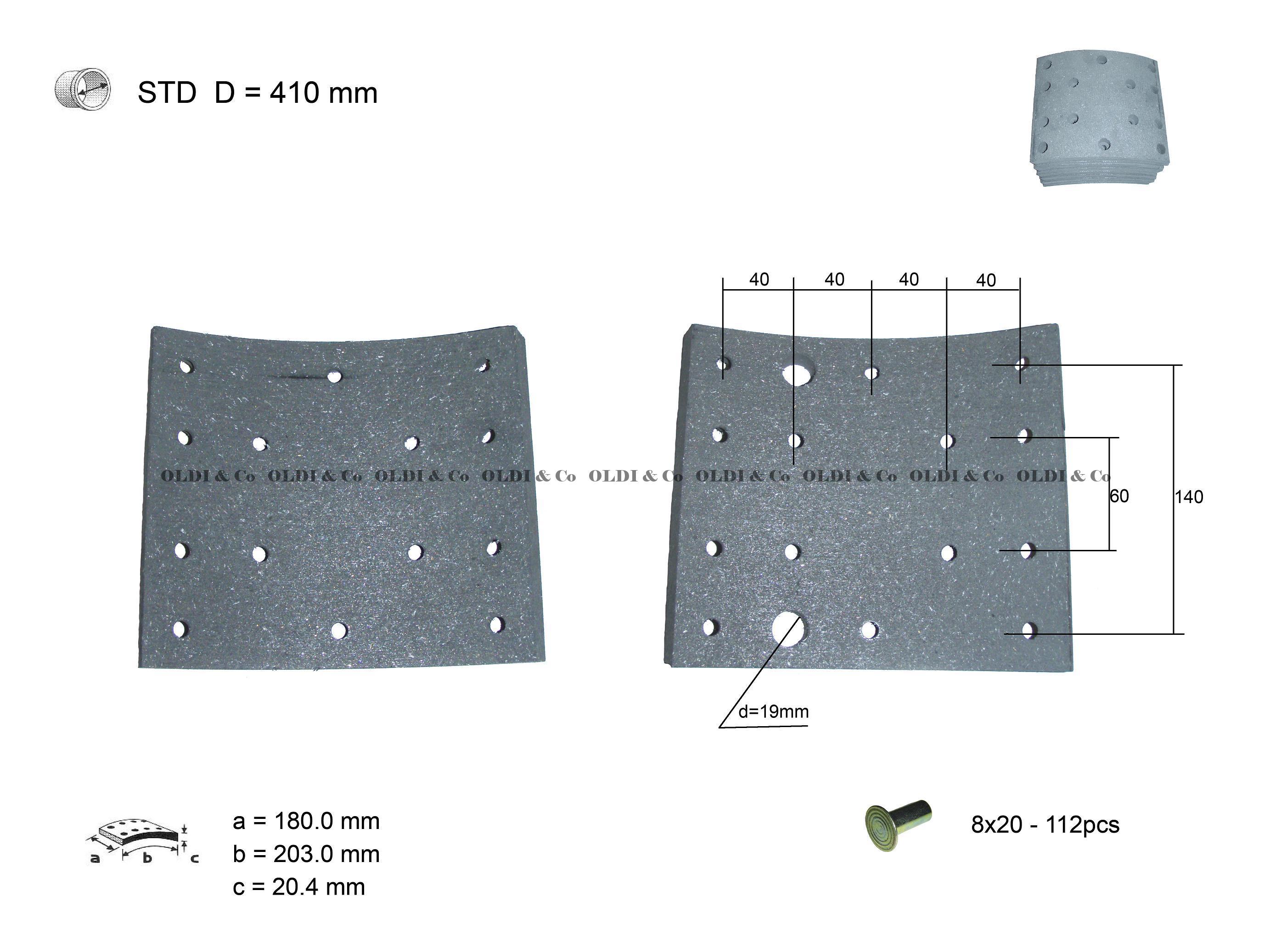

11.037.09245
IVECO - EuroSTAR, EuroTECH
Linings, WVA number: 19262
Repair size, mm: STD
Rivet type: 8x20
Diameter of a drum, mm: 410
Length, mm: 203
Quantity of rivets, pcs.: 112
Thickness, mm: 20.4
Width of a block, mm: 180

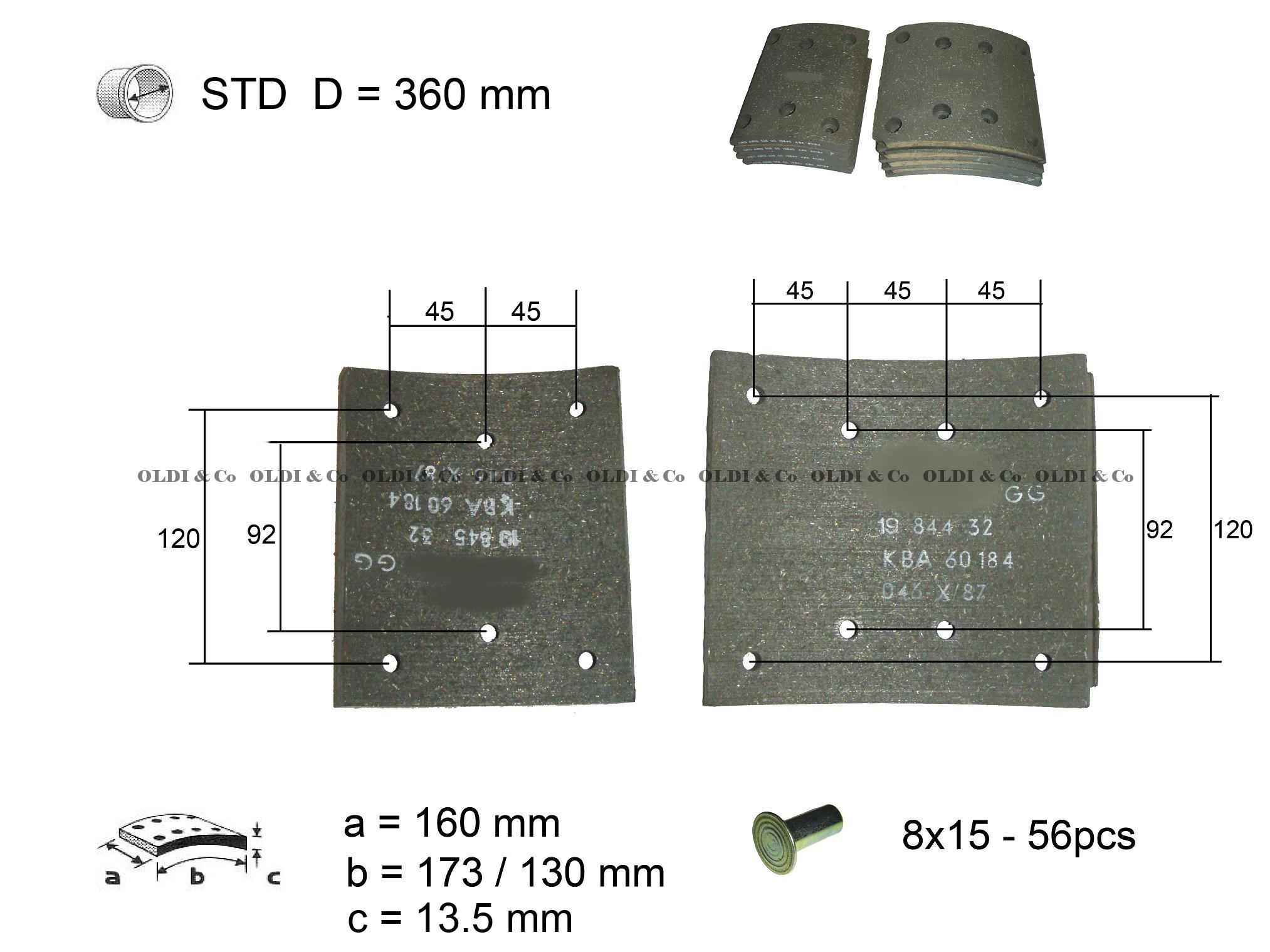

11.037.09246
MERCEDES - ATEGO I, Series LK
Linings, WVA number: 19506
Linings, WVA number: 19845
Repair size, mm: STD
Rivet type: 8x15
Diameter of a drum, mm: 360
Length, mm: 173
Length, mm: 130
Quantity of rivets, pcs.: 56
Thickness, mm: 13.4
Thickness, mm: 13.5
Width of a block, mm: 160

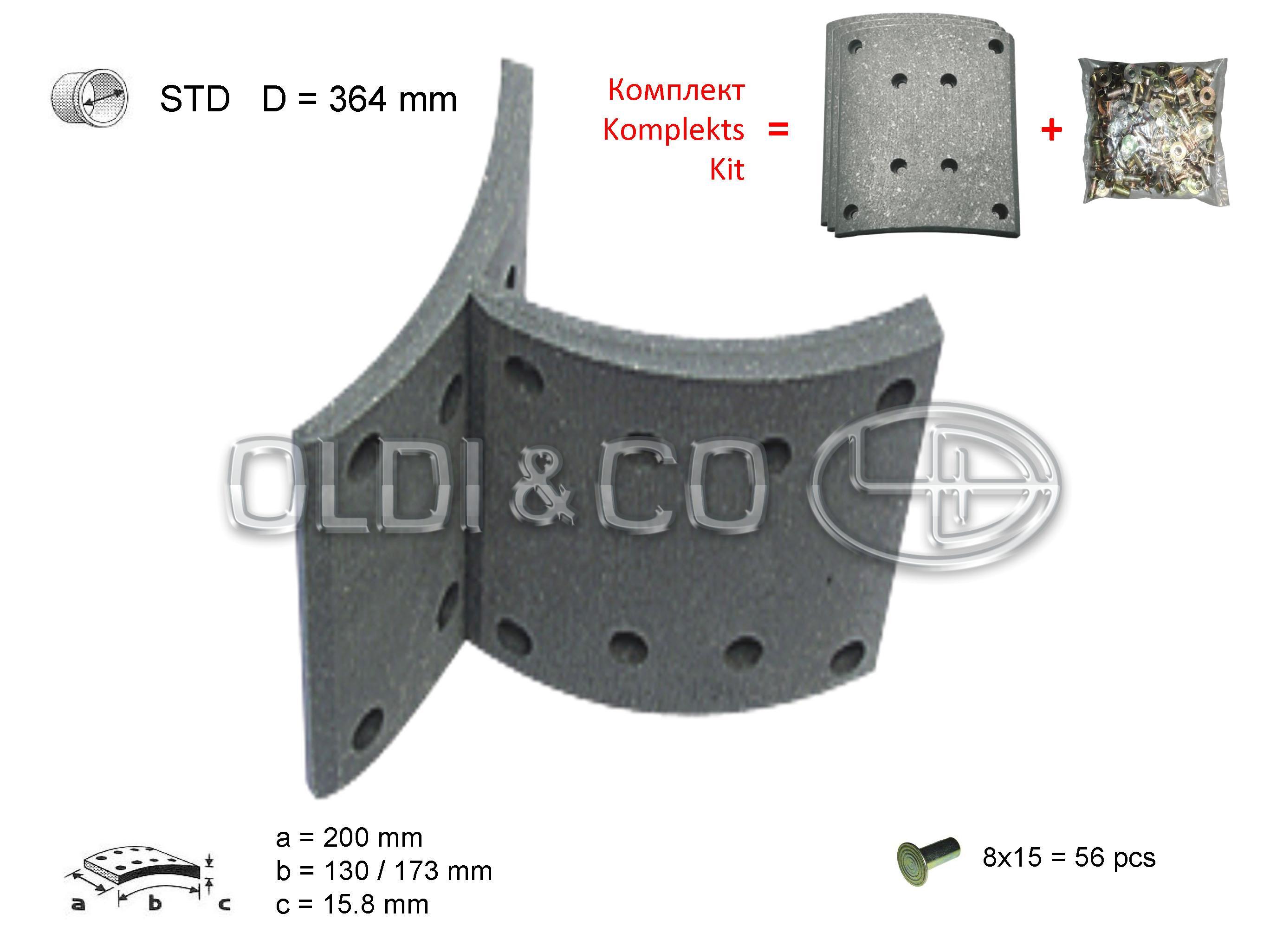

11.037.09247
MERCEDES - ATEGO I, ATEGO II, Series LK
Linings, WVA number: 19122
Linings, WVA number: 19505
Repair size, mm: STD
Rivet type: 8x15
Diameter of a drum, mm: 364
Length, mm: 130
Length, mm: 173
Quantity of rivets, pcs.: 56
Thickness, mm: 15.8
Width of a block, mm: 200

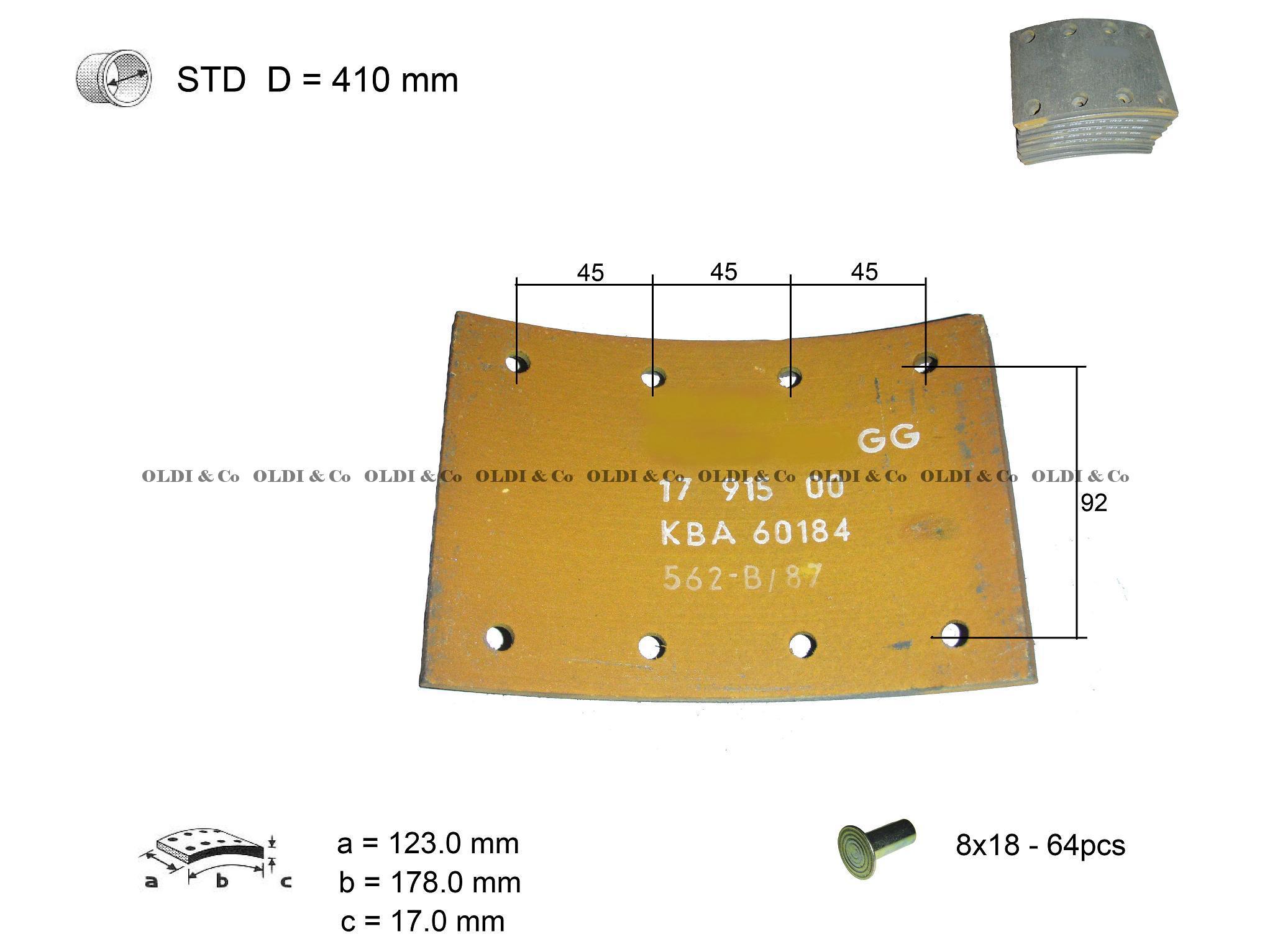

11.037.09249
MERCEDES - Series NG
Linings, WVA number: 17915
Repair size, mm: STD
Rivet type: 8x18
Diameter of a drum, mm: 410
Length, mm: 178
Quantity of rivets, pcs.: 64
Thickness, mm: 17.0
Width of a block, mm: 123
Possible next day delivery to Riga by special order:
| Mark | Product code | Description | On stock total (in Riga), qty | |
| LUMAG | WVA19166 | 19166 10 101 10 | OKLADZINY HAM.KASSBOHRER 19166/19167 I NADW. | 3.00 |
| LUMAG | WVA19486 | 19494 20 101 10 | OKLADZINY HAM.MAN 19486 II NADW. | 3.00 |
| TEXTAR | WVA19495/02 | 19495 1910 0 8 T088 | OKLADZINY HAM.MAN 19495 II NADW. | 2.00 |
| LUMAG | WVA19487 | 19495 20 101 10 | OKLADZINY HAM.MAN 19495 II NADW. | >5 |
| LUMAG | WVA19647 | 19647 20 101 10 | OKLADZINY HAM.SCANIA 19647 | 1.00 |
The order of goods for the next day is carried out before 15:50 of the current day. The ordered goods are delivered to the OLDI central warehouse (Piedrujas street 30, Riga) until 11:00 the next day. If further delivery is required, it is carried out by agreement with the manager of the company (for registered users, the manager's contacts are indicated at the bottom of the page).
