Schock absorber search by dimensions
38.001.18288
Product group: Shock absorbers
Description: Shock absorber
IVECO - Series TURBO
Installation place: Rear axle
Type: O/O
Internal diameter of lower silentblock, mm: 20
Internal diameter of upper silentblock, mm: 20
Length at compression, mm: 356
Length at stretching, mm: 541
Lower silentblock width, mm: 46
Upper silentblock width, mm: 46

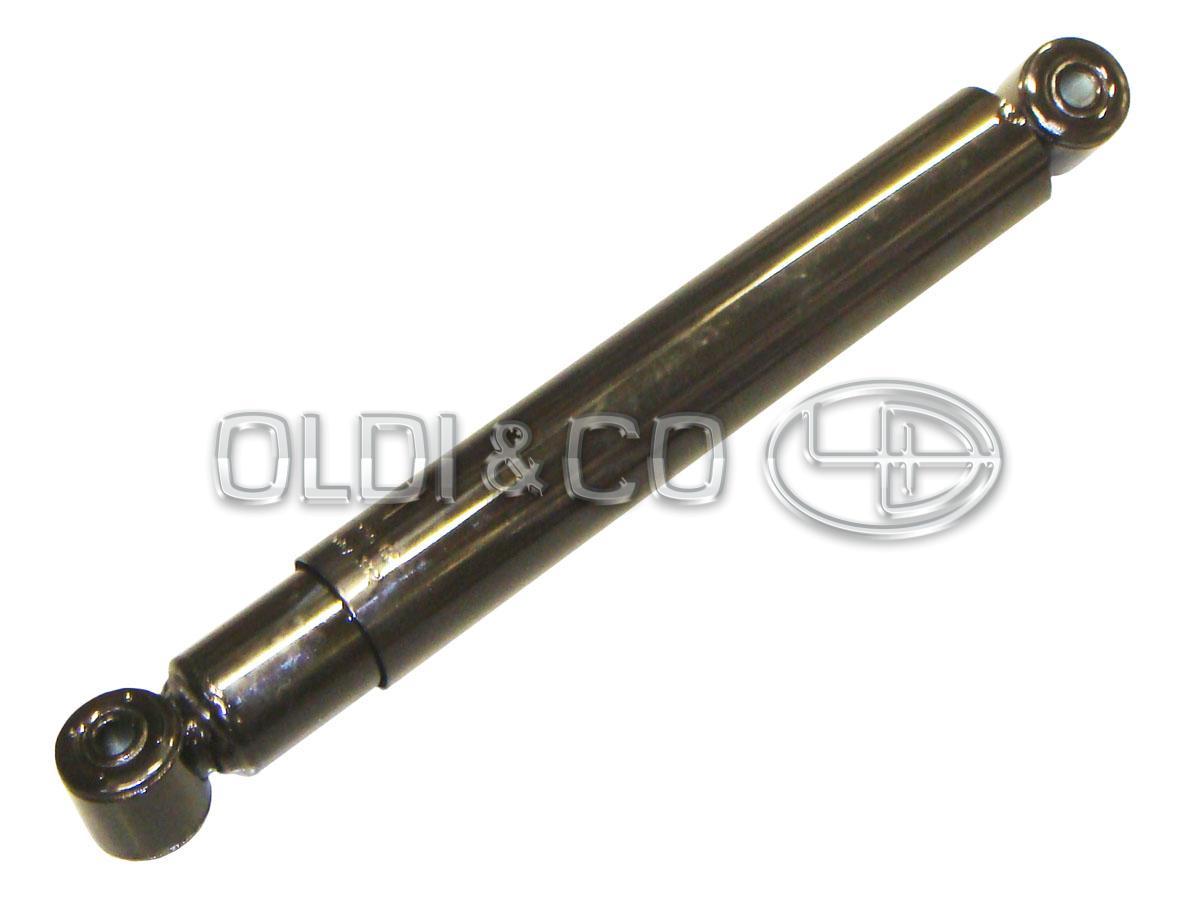

38.001.18783
Product group: Shock absorbers
Description: Shock absorber
MERCEDES - ACTROS II, ACTROS III
Installation place: Front axle
Type: O/O
Internal diameter of lower silentblock, mm: 16
Internal diameter of upper silentblock, mm: 16
Length at compression, mm: 491
Length at stretching, mm: 806
Lower silentblock width, mm: 50
Upper silentblock width, mm: 50

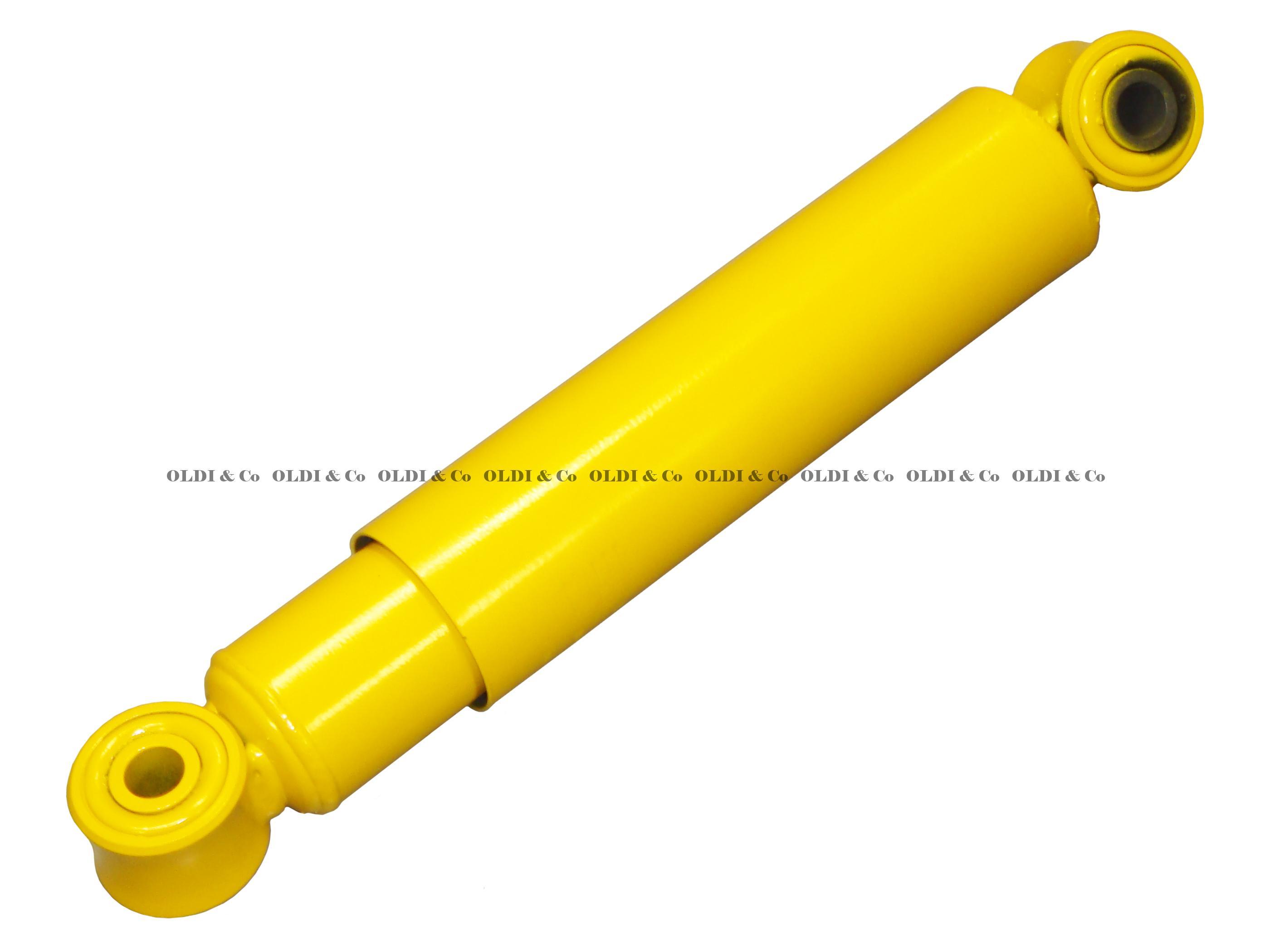

38.001.18798
Product group: Shock absorbers
Description: Shock absorber
RENAULT - MAGNUM DXi, MAGNUM E-TECH, KERAX II, KERAX III DXi, PREMIUM II, PREMIUM III DXi
VOLVO - Series FE ver.1
Installation place: Front axle
Type: O/O
Internal diameter of lower silentblock, mm: 20
Internal diameter of upper silentblock, mm: 20
Length at compression, mm: 431
Length at stretching, mm: 708
Lower silentblock width, mm: 50
Upper silentblock width, mm: 50

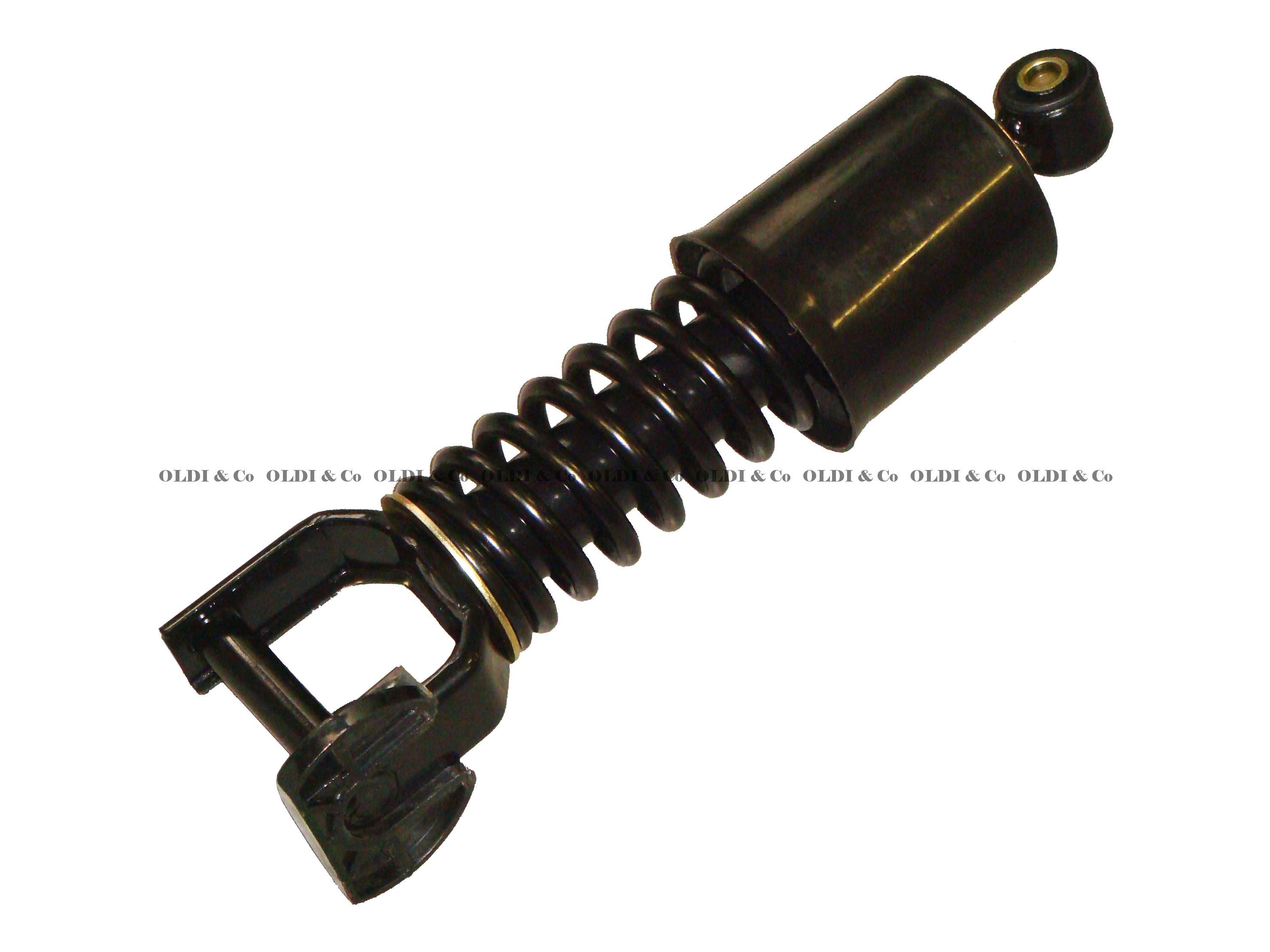

07.001.18976
Product group: Cabin parts
Description: Cab shock absorber
MERCEDES - Series ACTROS
Installation place: Rear
Internal diameter of upper silentblock, mm: 14
Length at compression, mm: 327
Length at stretching, mm: 360
Upper silentblock width, mm: 40

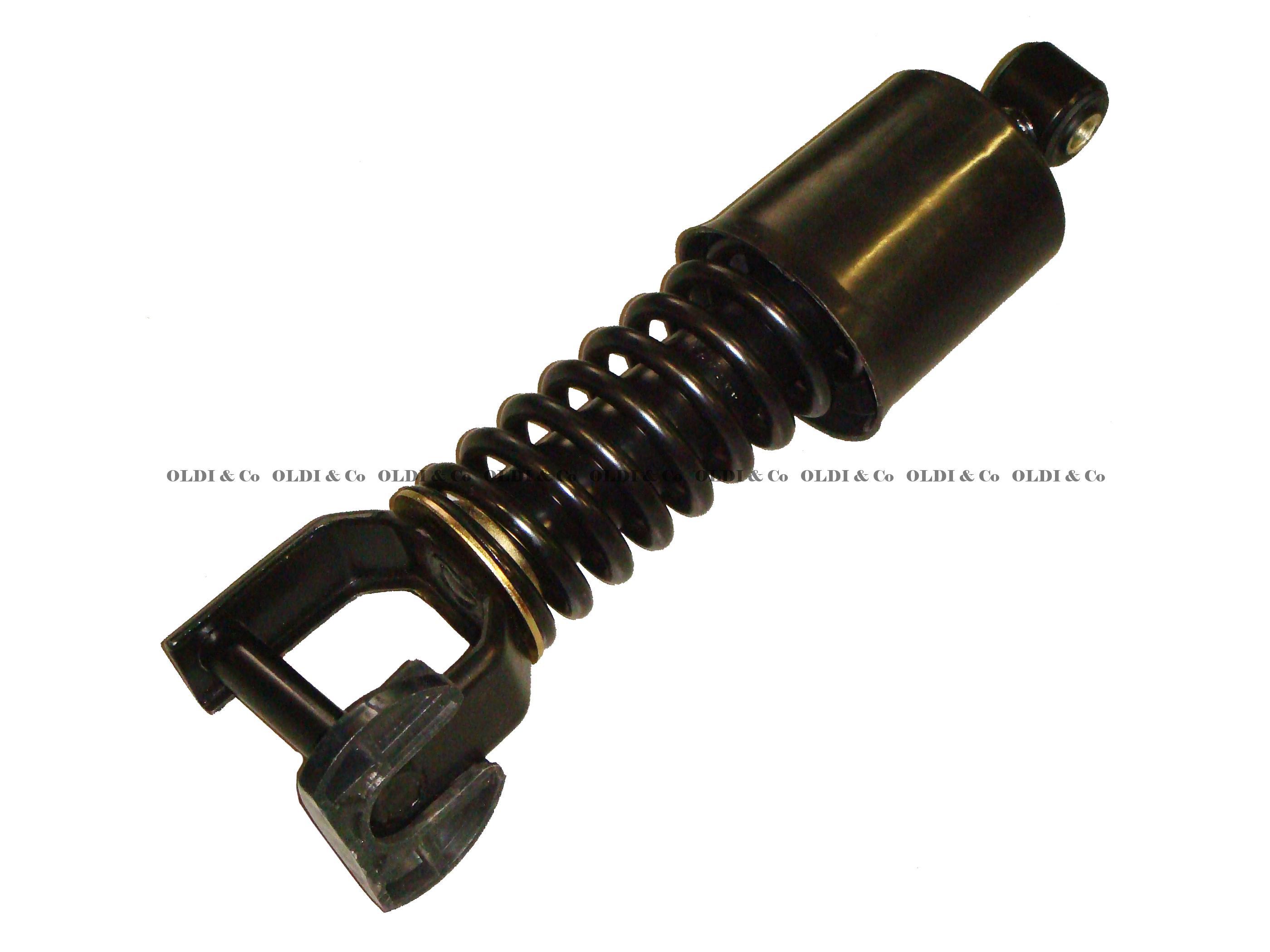

07.001.18977
Product group: Cabin parts
Description: Cab shock absorber
MERCEDES - Series ACTROS
Installation place: Rear
Internal diameter of upper silentblock, mm: 14
Length at compression, mm: 327
Length at stretching, mm: 360
Upper silentblock width, mm: 40

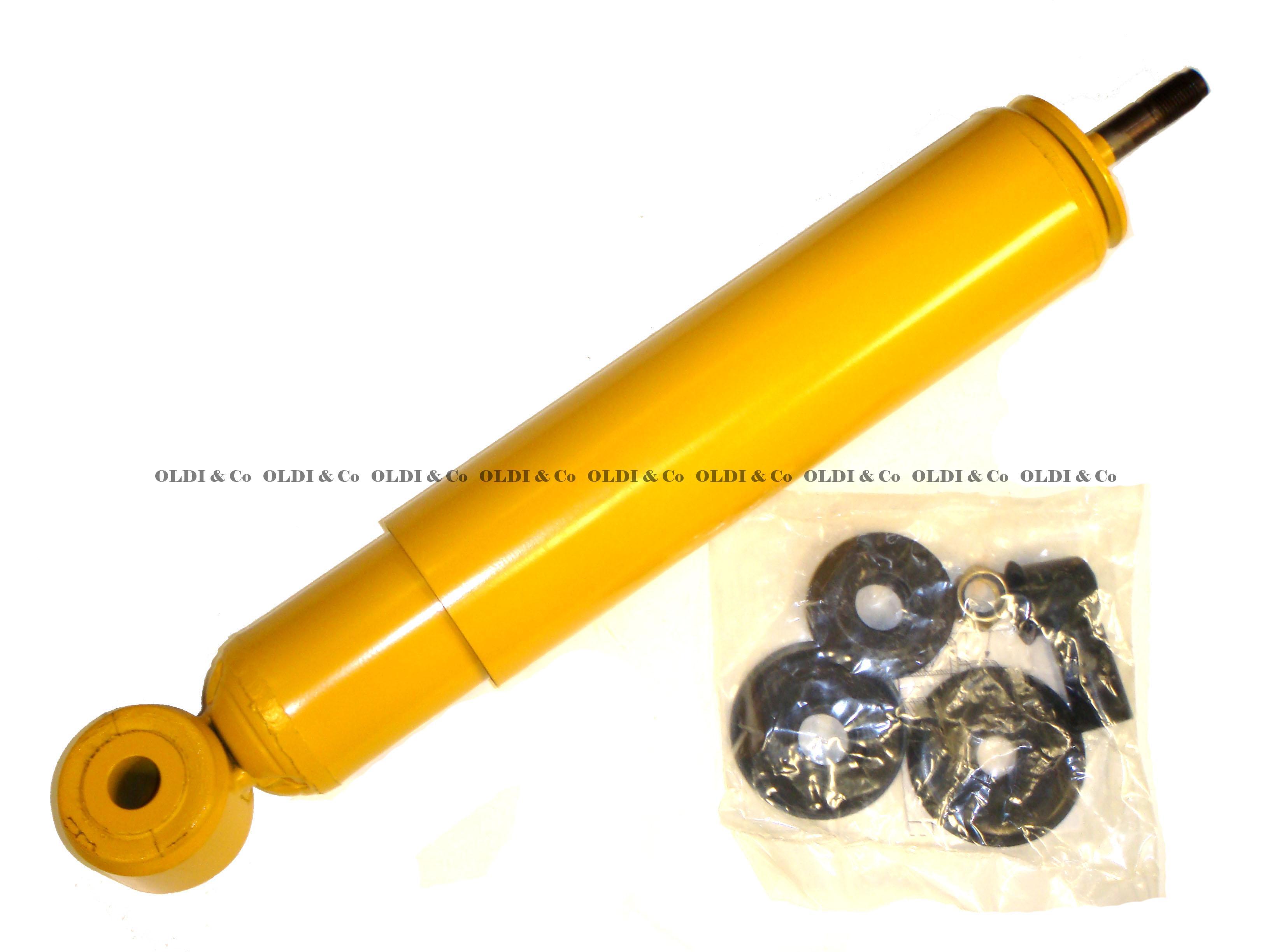

38.001.19009
Product group: Shock absorbers
Description: Shock absorber
MAN - Series TGA/TGS/TGX, TGS, TGX
Installation place: Front axle
Type: I/O
Internal diameter of upper silentblock, mm: 24
Length at compression, mm: 516
Length at stretching, mm: 845
Lower silentblock width, mm: 55

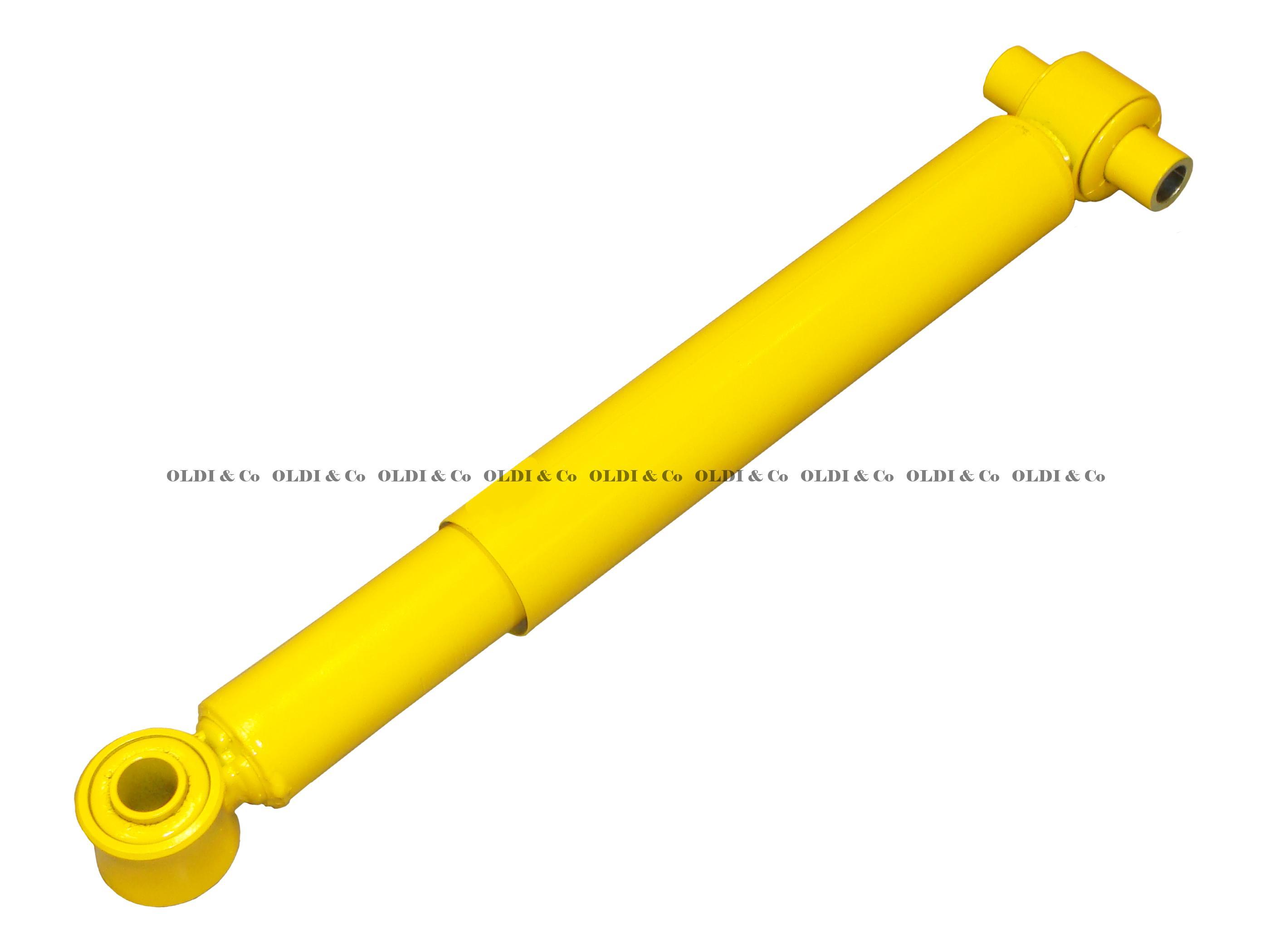

38.001.19285
Product group: Shock absorbers
Description: Shock absorber
MAN - Series TGA/TGS/TGX
Installation place: Front axle
Type: O/O
Internal diameter of lower silentblock, mm: 20
Internal diameter of upper silentblock, mm: 20
Length at compression, mm: 545
Length at stretching, mm: 870
Lower silentblock width, mm: 55
Upper silentblock width, mm: 105

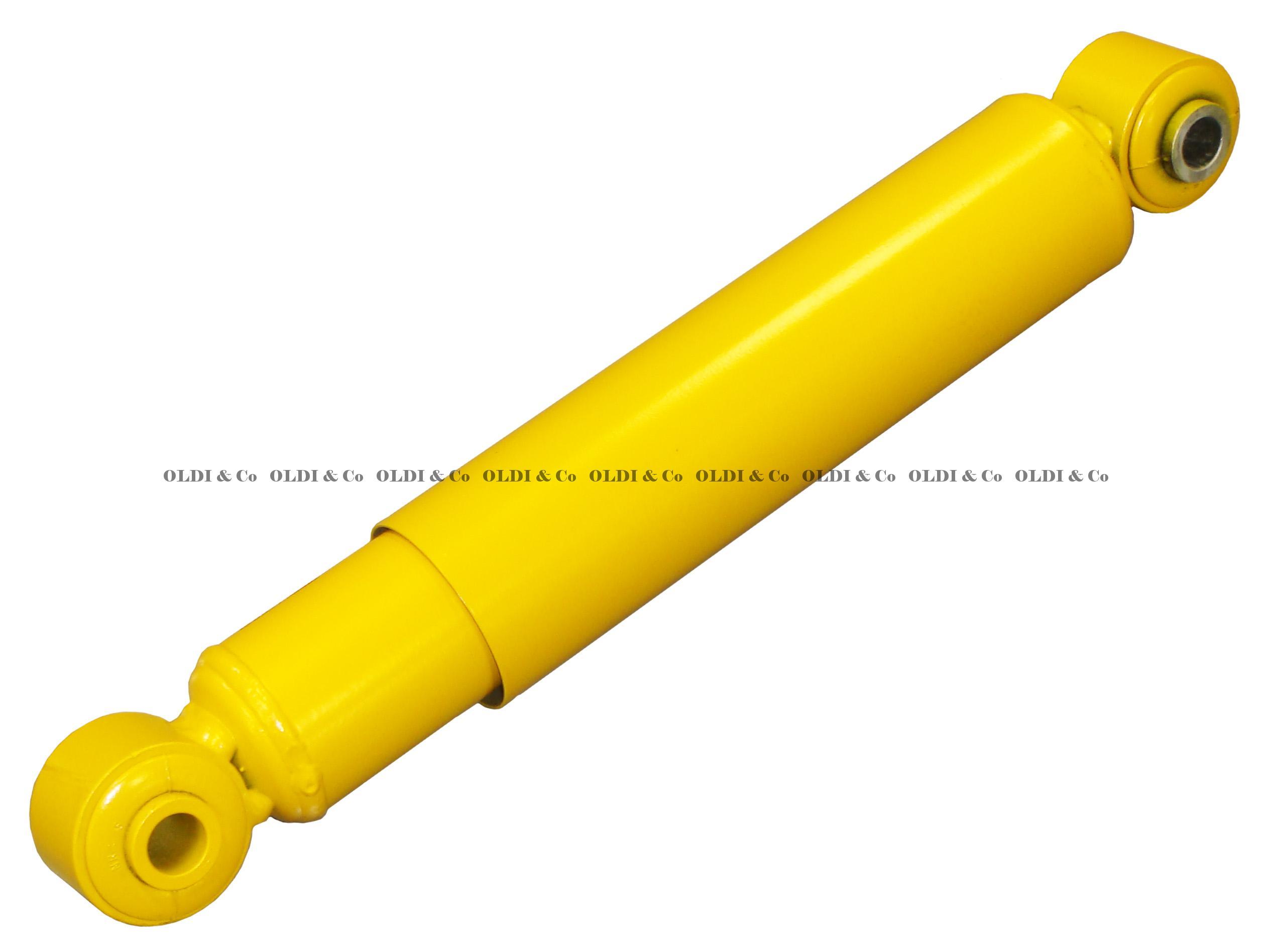

38.001.19286
Product group: Shock absorbers
Description: Shock absorber
MAN - Series TGA/TGS/TGX
Installation place: Rear axle
Type: O/O
Internal diameter of lower silentblock, mm: 20
Internal diameter of upper silentblock, mm: 20
Length at compression, mm: 453
Length at stretching, mm: 733
Lower silentblock width, mm: 62
Upper silentblock width, mm: 62

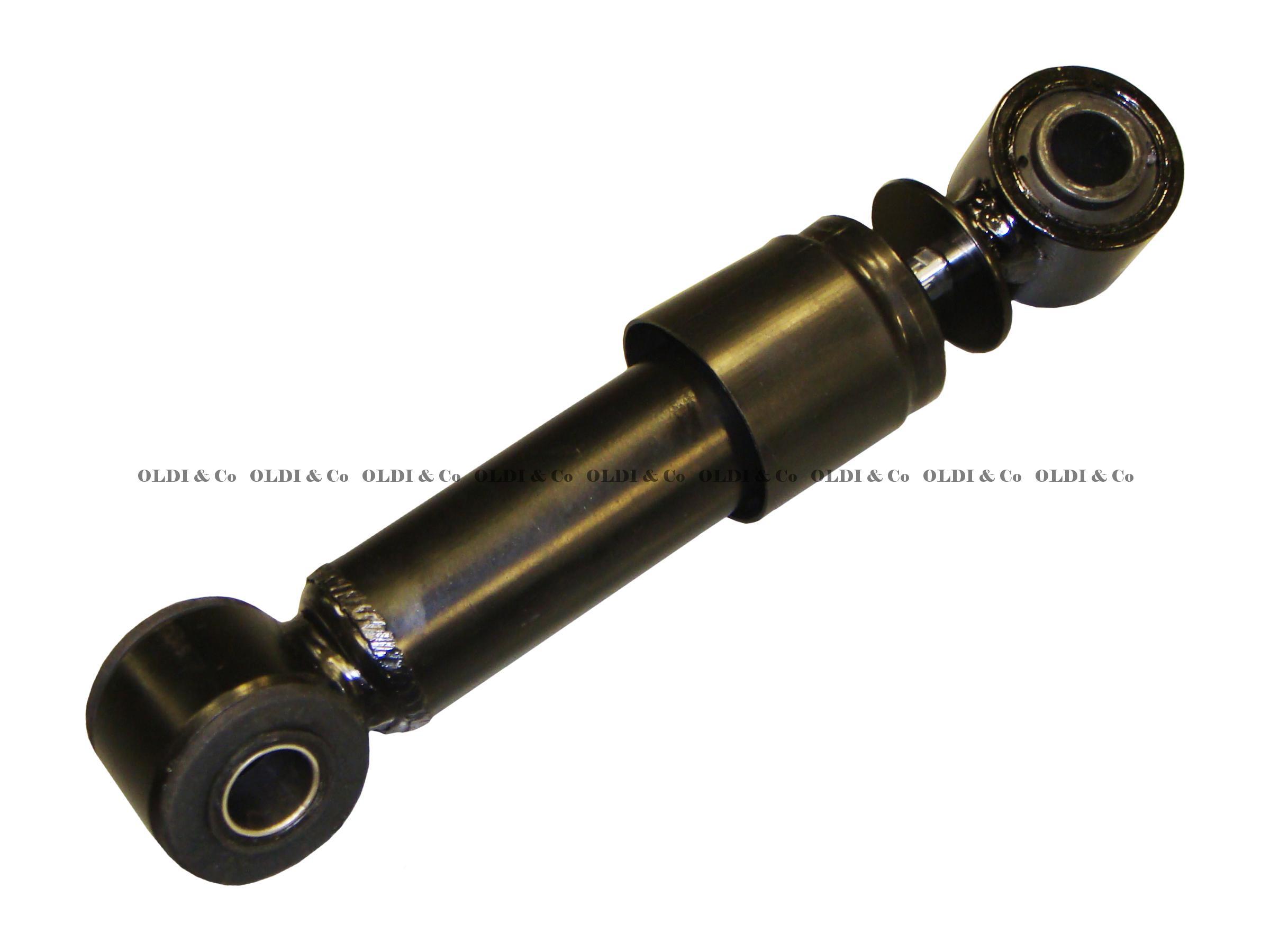

07.001.19287
Product group: Cabin parts
Description: Cab shock absorber
VOLVO - FH12'03, FH13'05, FH16'02, FH13'08
Installation place: Rear
Type: O/O
38.001.19395
Product group: Shock absorbers
Description: Shock absorber
KRONE
MERCEDES AXLES
_TRAILERS
Installation place: Trailer
Type: O/O
Internal diameter of lower silentblock, mm: 20
Internal diameter of upper silentblock, mm: 20
Length at compression, mm: 280
Length at stretching, mm: 405
Lower silentblock width, mm: 59
Upper silentblock width, mm: 89
