Brake system
Brake lining kit
11.037.09514
MERCEDES - Series LK, T2
Linings, WVA number: 17278
Linings, WVA number: 17927
Repair size, mm: 1 rem
Rivet type: 8x15
Diameter of a drum, mm: 304
Length, mm: 259
Quantity of rivets, pcs.: 40
Thickness, mm: 12.8
Width of a block, mm: 105

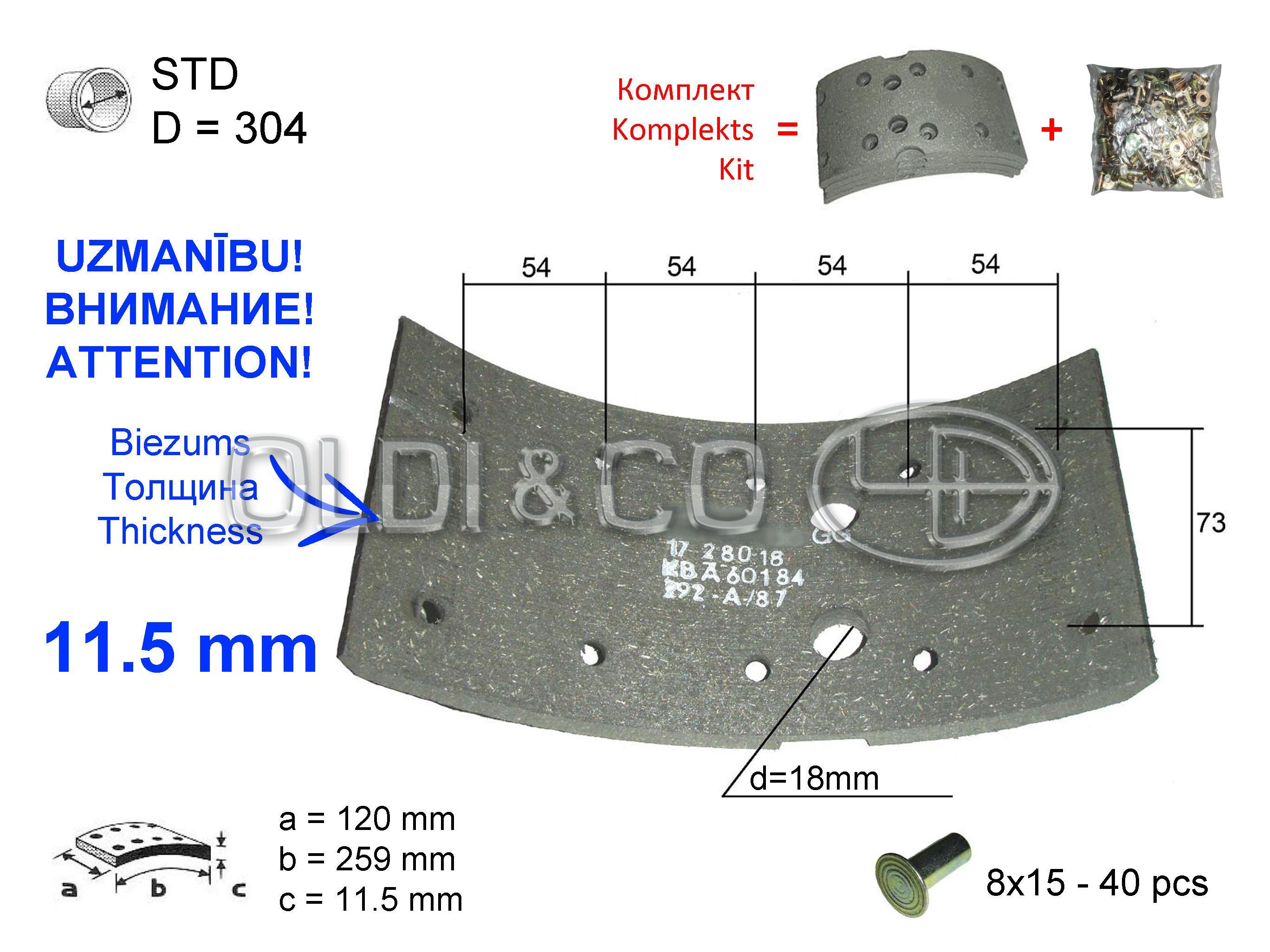

11.037.09515
MERCEDES - Series LK
Linings, WVA number: 17280
Repair size, mm: STD
Rivet type: 8x15
Diameter of a drum, mm: 304
Length, mm: 259
Quantity of rivets, pcs.: 40
Thickness, mm: 11.5
Width of a block, mm: 120

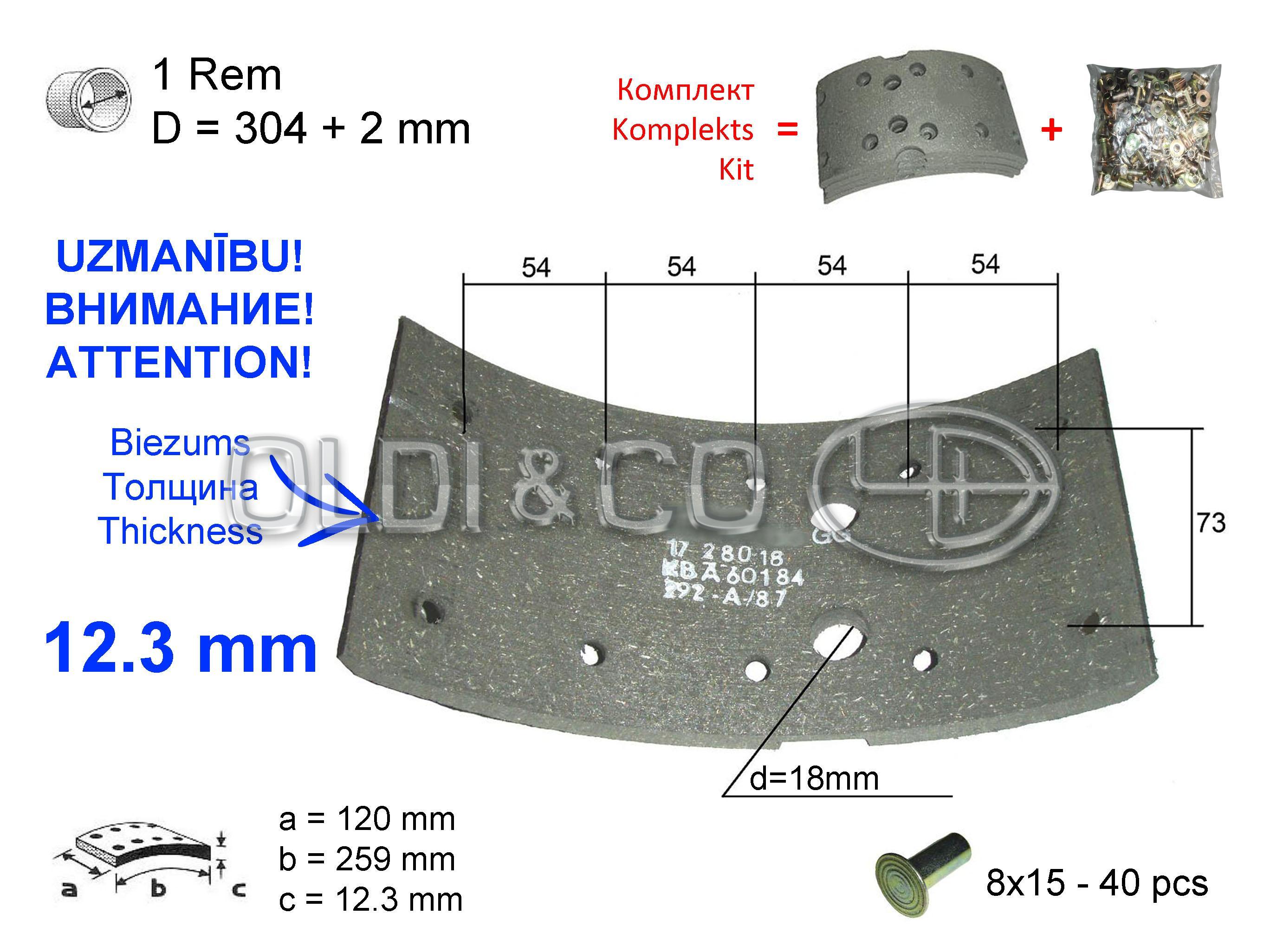

11.037.09516
MERCEDES - Series LK
Linings, WVA number: 17280
Repair size, mm: 1 rem
Rivet type: 8x15
Diameter of a drum, mm: 304
Length, mm: 259
Quantity of rivets, pcs.: 40
Thickness, mm: 12.5
Width of a block, mm: 120
11.037.09517
MERCEDES - Series LK
Linings, WVA number: 17287
Linings, WVA number: 17929
Repair size, mm: STD
Rivet type: 8x15
Diameter of a drum, mm: 308
Length, mm: 259
Quantity of rivets, pcs.: 40
Thickness, mm: 13.3
Width of a block, mm: 135

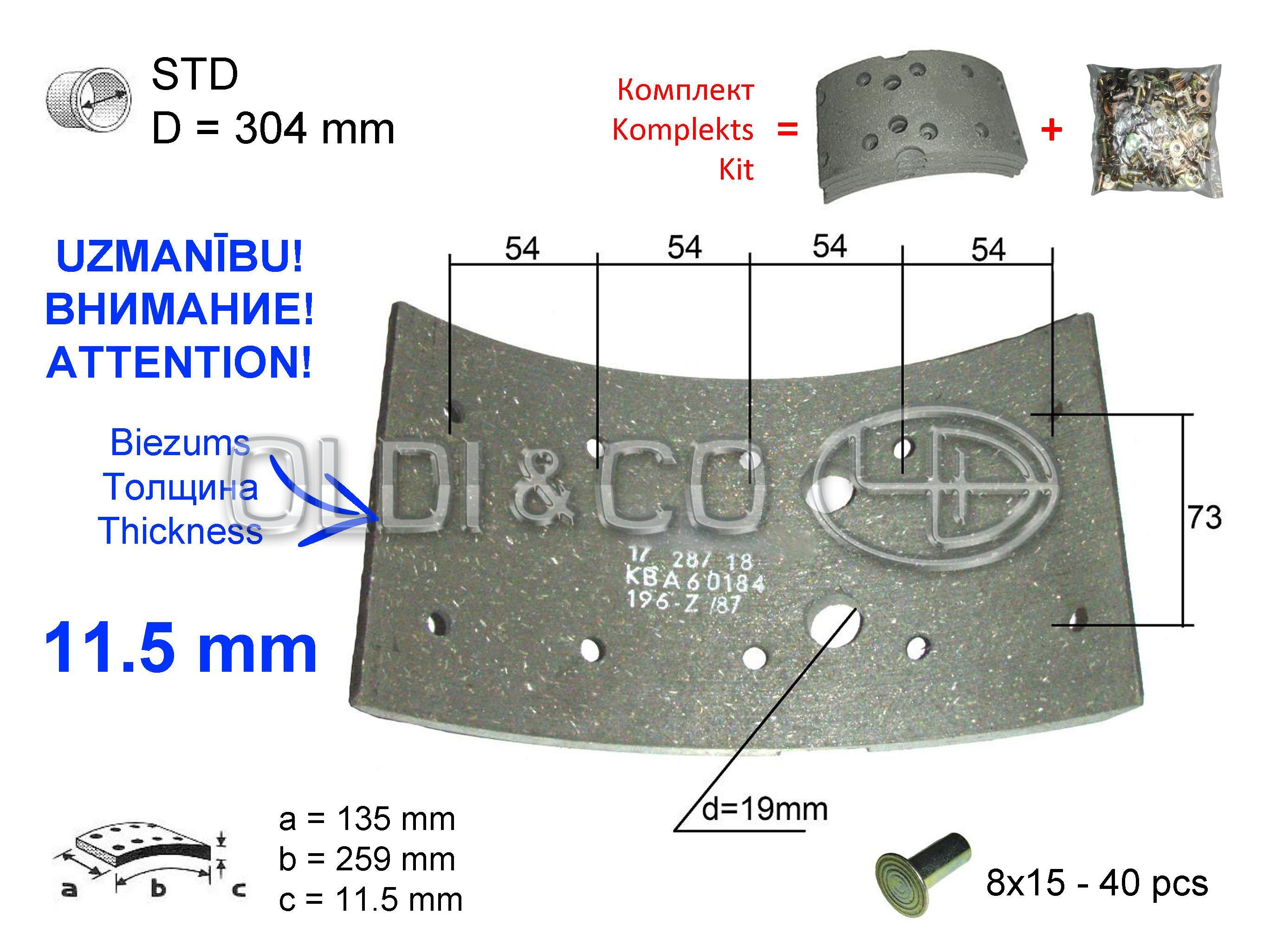

11.037.09518
MERCEDES - Series LK
Linings, WVA number: 17287
Linings, WVA number: 17929
Repair size, mm: STD
Rivet type: 8x15
Diameter of a drum, mm: 304
Length, mm: 259
Quantity of rivets, pcs.: 40
Thickness, mm: 11.5
Width of a block, mm: 135

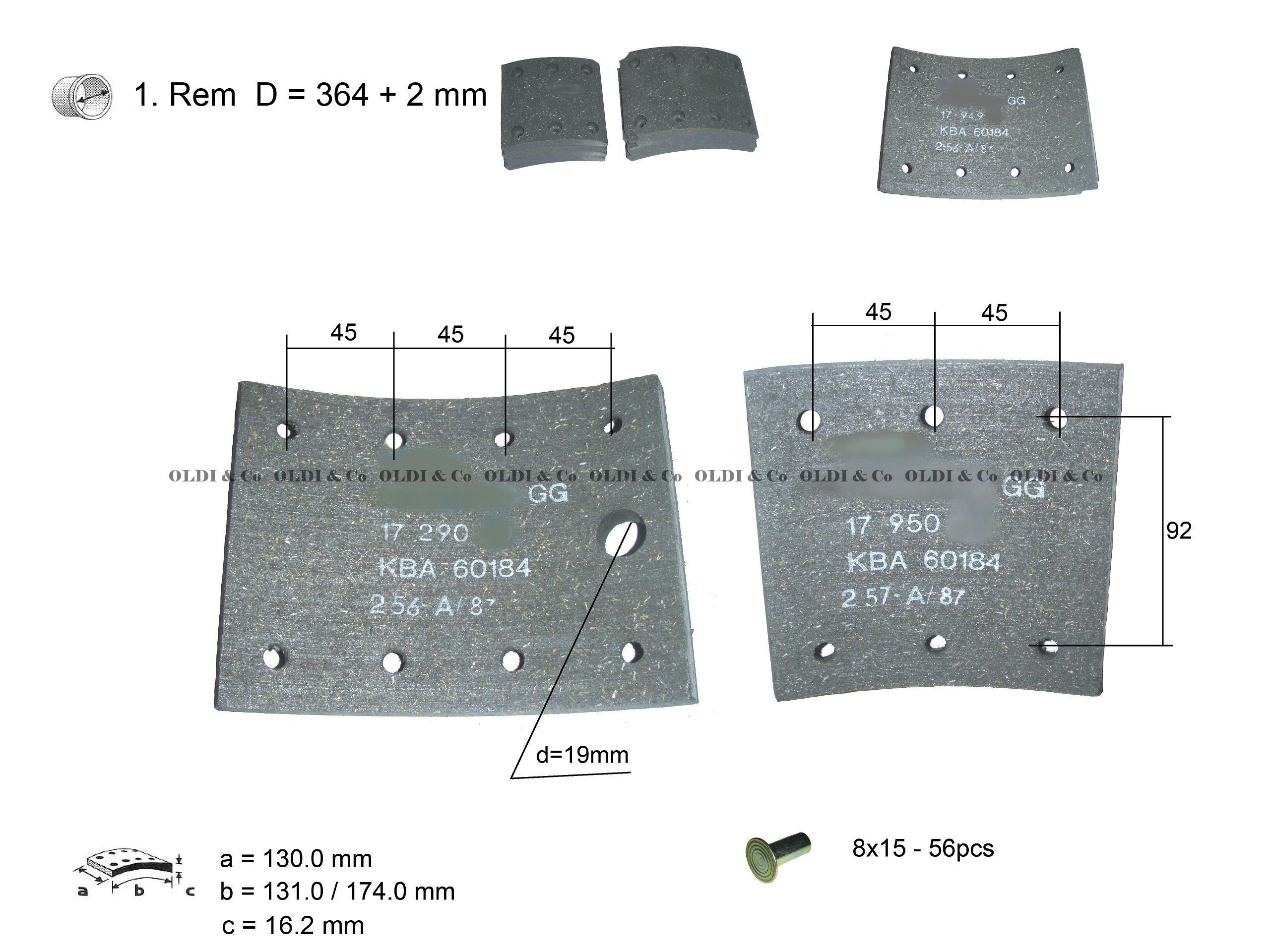

11.037.09519
MERCEDES - ATEGO I, Series LK
Linings, WVA number: 17290
Linings, WVA number: 17950
Repair size, mm: 1 rem
Rivet type: 8x15
Diameter of a drum, mm: 364
Length, mm: 174
Length, mm: 131
Quantity of rivets, pcs.: 56
Thickness, mm: 16.5
Thickness, mm: 16.4
Width of a block, mm: 130
11.037.09520
MERCEDES - ATEGO I, Series LK
Linings, WVA number: 17290
Linings, WVA number: 17950
Repair size, mm: 1 rem
Rivet type: 8x15
Diameter of a drum, mm: 360
Length, mm: 174
Length, mm: 131
Quantity of rivets, pcs.: 56
Thickness, mm: 14.5
Width of a block, mm: 130

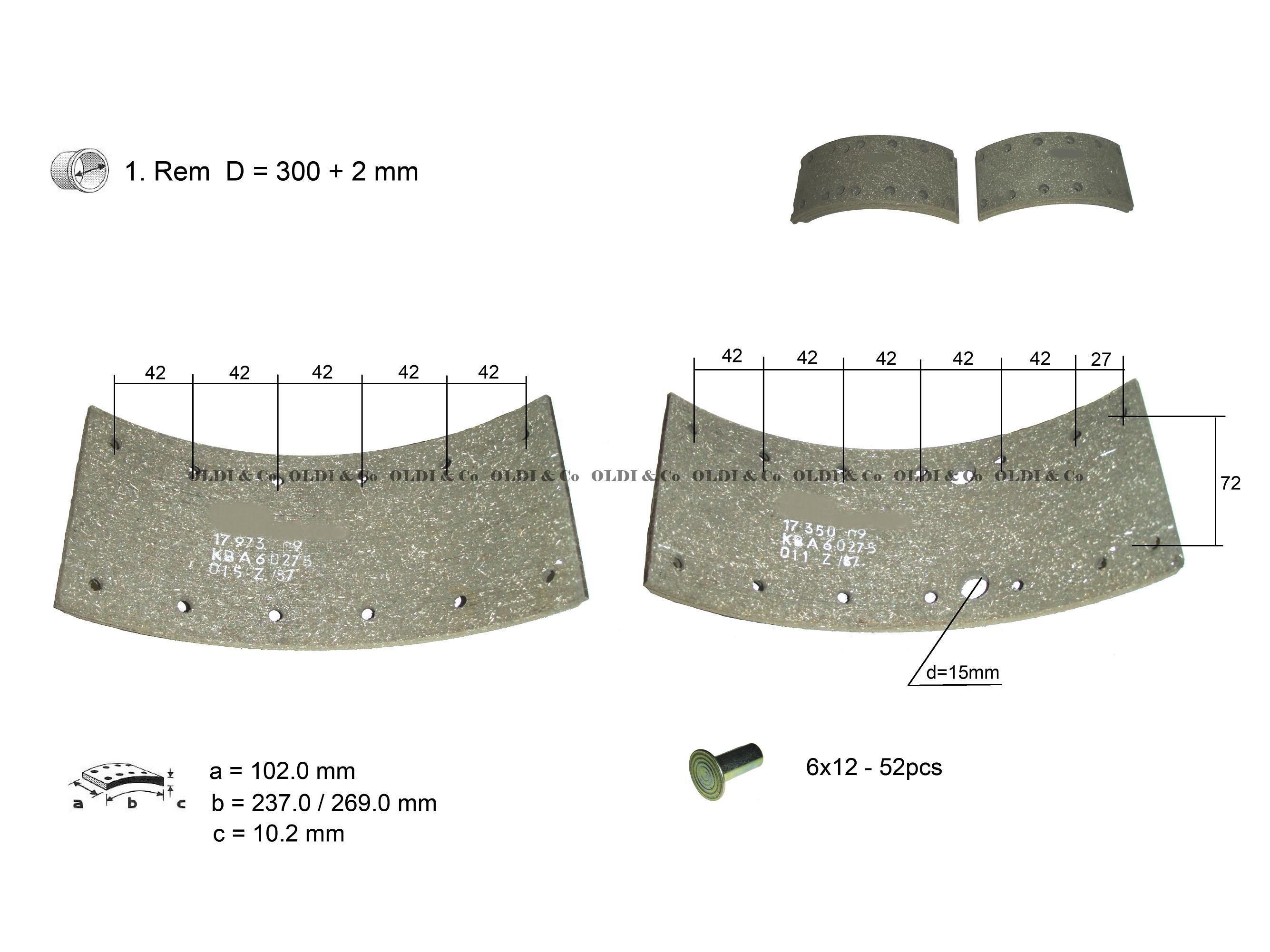

11.037.09521
MERCEDES - T2
Linings, WVA number: 17350
Linings, WVA number: 17973
Repair size, mm: 1 rem
Rivet type: 6x12
Diameter of a drum, mm: 300
Length, mm: 269
Length, mm: 237
Quantity of rivets, pcs.: 52
Thickness, mm: 10.2
Width of a block, mm: 102

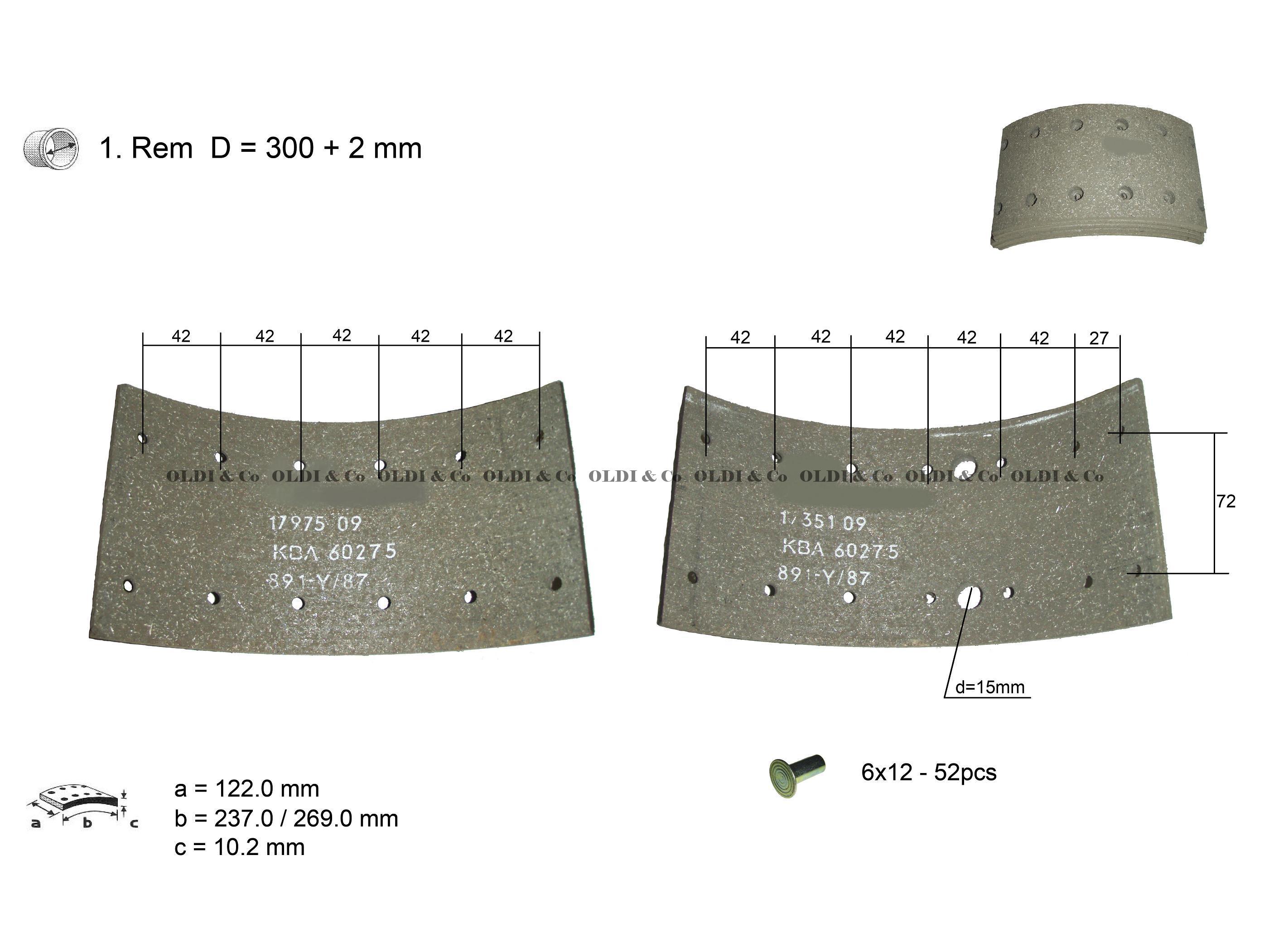

11.037.09522
MERCEDES - T2
Linings, WVA number: 17351
Linings, WVA number: 17935
Repair size, mm: 1 rem
Rivet type: 6x12
Diameter of a drum, mm: 300
Length, mm: 269
Length, mm: 237
Quantity of rivets, pcs.: 52
Thickness, mm: 10.2
Width of a block, mm: 122

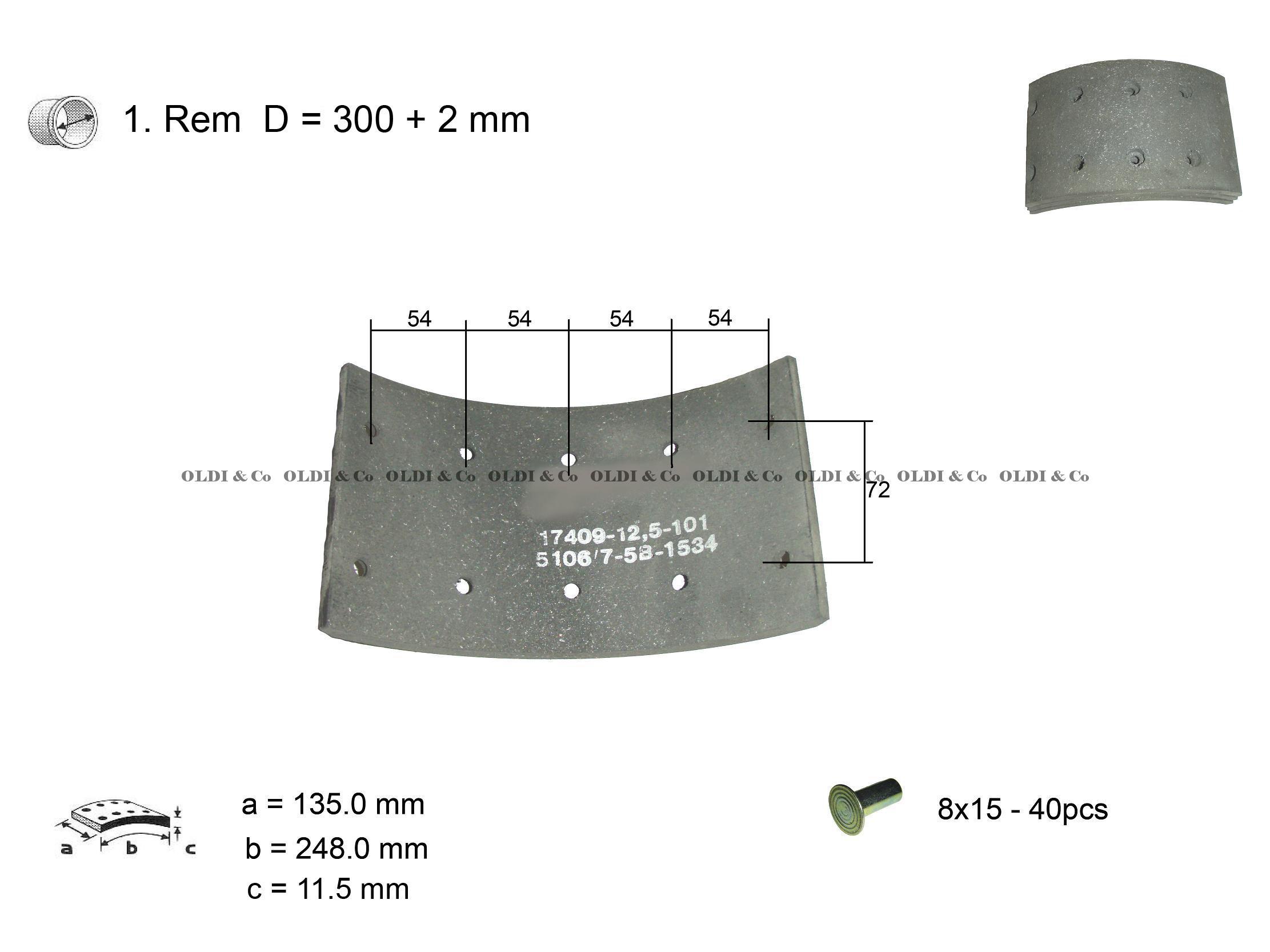

11.037.09523
MERCEDES - BUS, Old Models
Linings, WVA number: 17409
Repair size, mm: 1 rem
Rivet type: 8x15
Diameter of a drum, mm: 300
Length, mm: 248
Quantity of rivets, pcs.: 40
Thickness, mm: 11.0
Width of a block, mm: 135
