Brake system
Brake lining kit
11.037.03513
BPW
Linings, WVA number: 19902
Linings, WVA number: 19903
Repair size, mm: STD
Rivet type: 8x15
Diameter of a drum, mm: 360
Length, mm: 159
Length, mm: 189
Quantity of rivets, pcs.: 72
Thickness, mm: 18.0
Width of a block, mm: 200

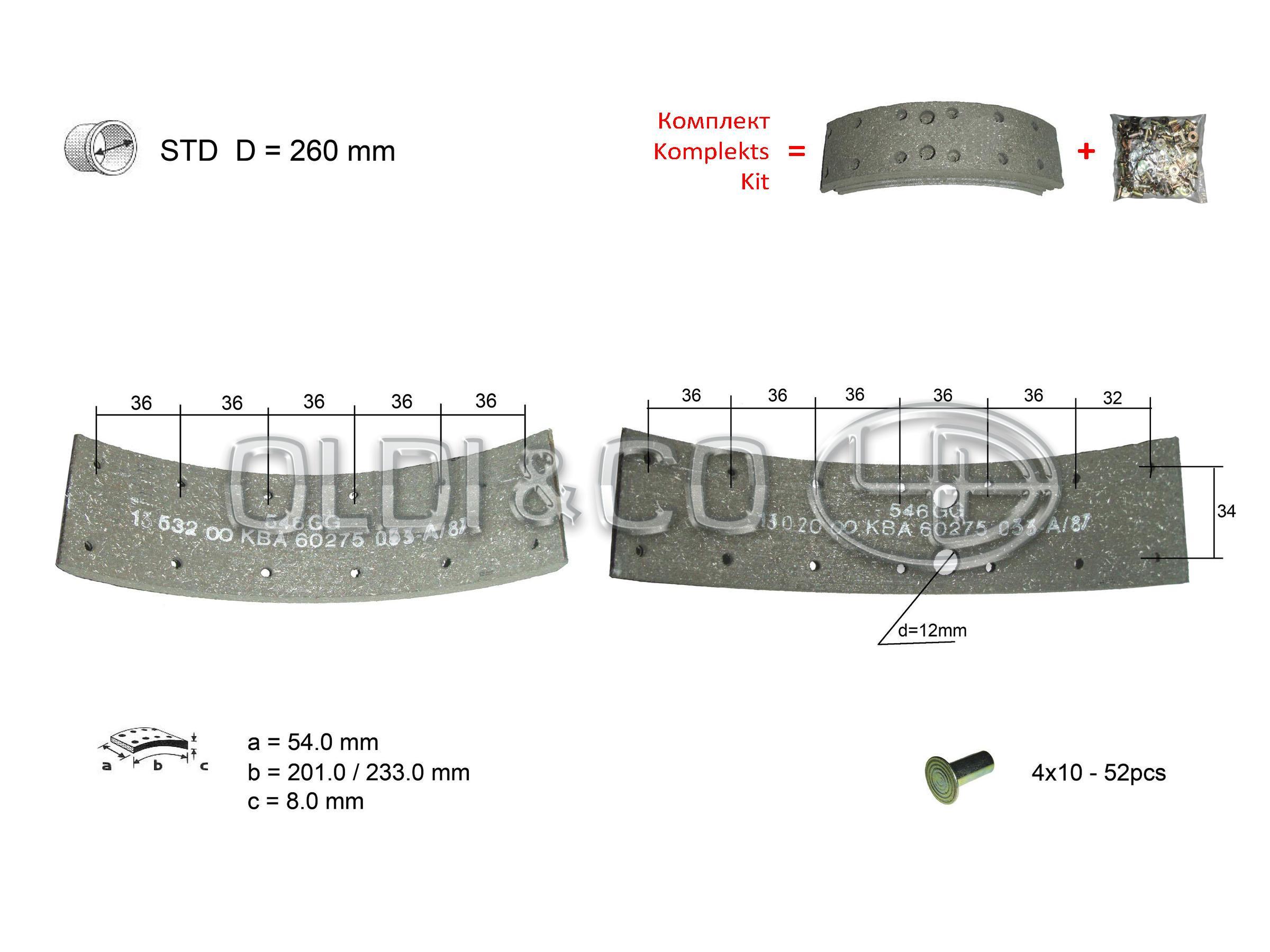

11.037.03573
MERCEDES - T1
Linings, WVA number: 13020
Linings, WVA number: 13532
Repair size, mm: STD
Diameter of a drum, mm: 260
Length, mm: 201
Length, mm: 233
Quantity of rivets, pcs.: 52
Thickness, mm: 8.0
Width of a block, mm: 54

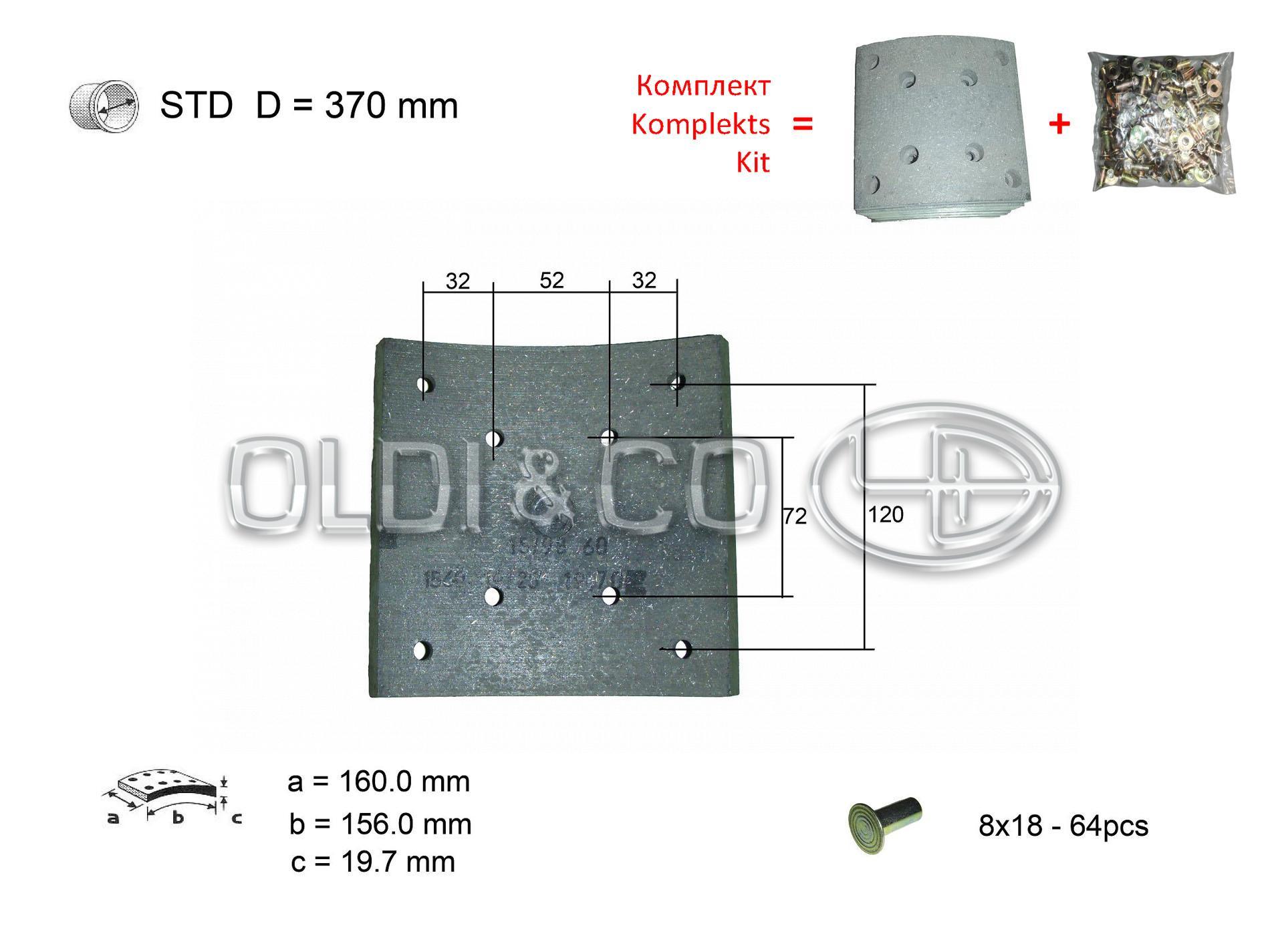

11.037.03574
MERCEDES - BUS
NEOPLAN
Linings, WVA number: 19125
Repair size, mm: STD
Rivet type: 8x18
Diameter of a drum, mm: 370
Length, mm: 156
Quantity of rivets, pcs.: 64
Thickness, mm: 19.4
Width of a block, mm: 160

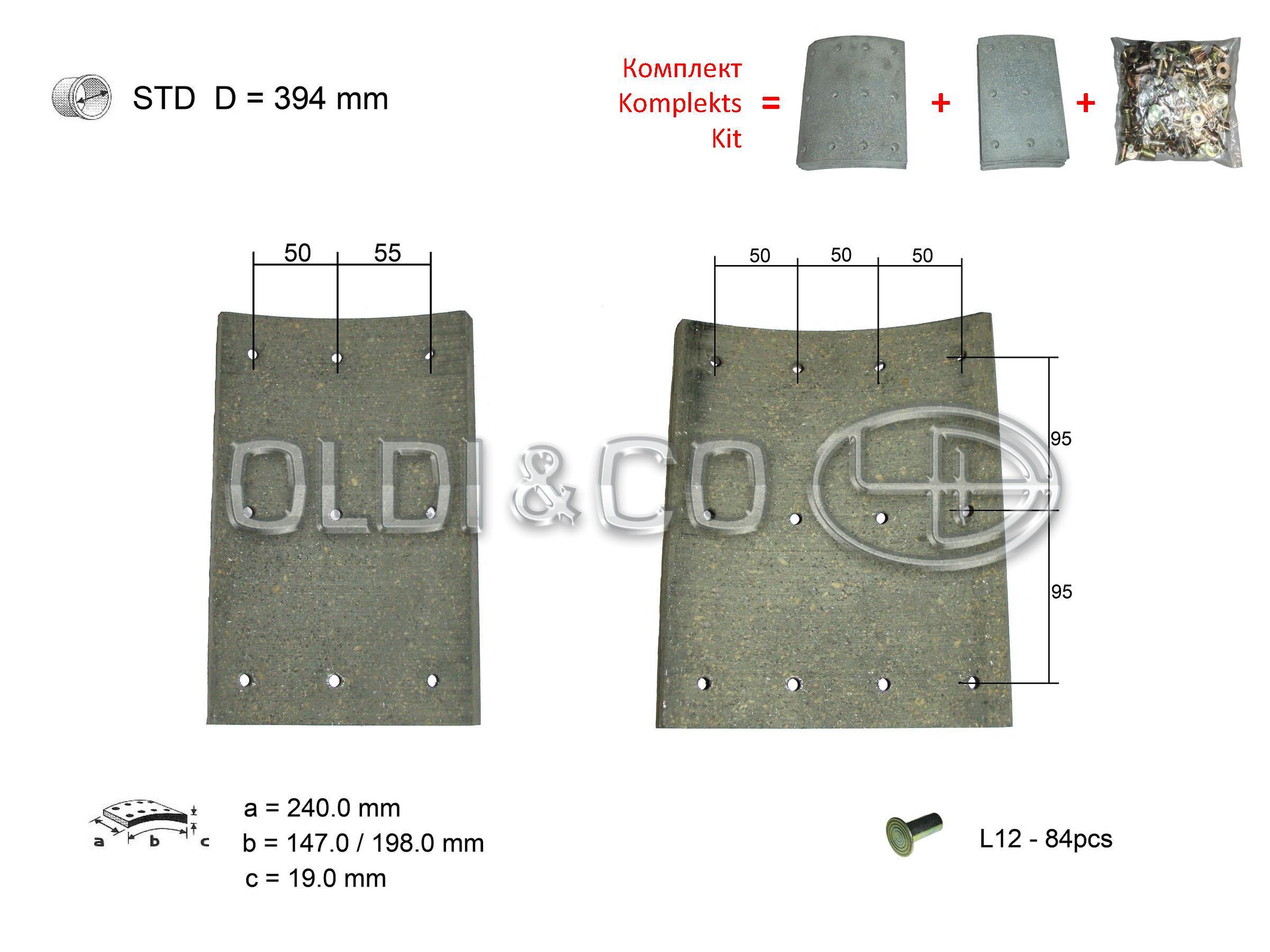

11.037.03576
VOLVO - F12
Linings, WVA number: 19885
Linings, WVA number: 19886
Repair size, mm: STD
Rivet type: L12
Diameter of a drum, mm: 394
Length, mm: 198
Length, mm: 147
Quantity of rivets, pcs.: 84
Thickness, mm: 19.0
Width of a block, mm: 240

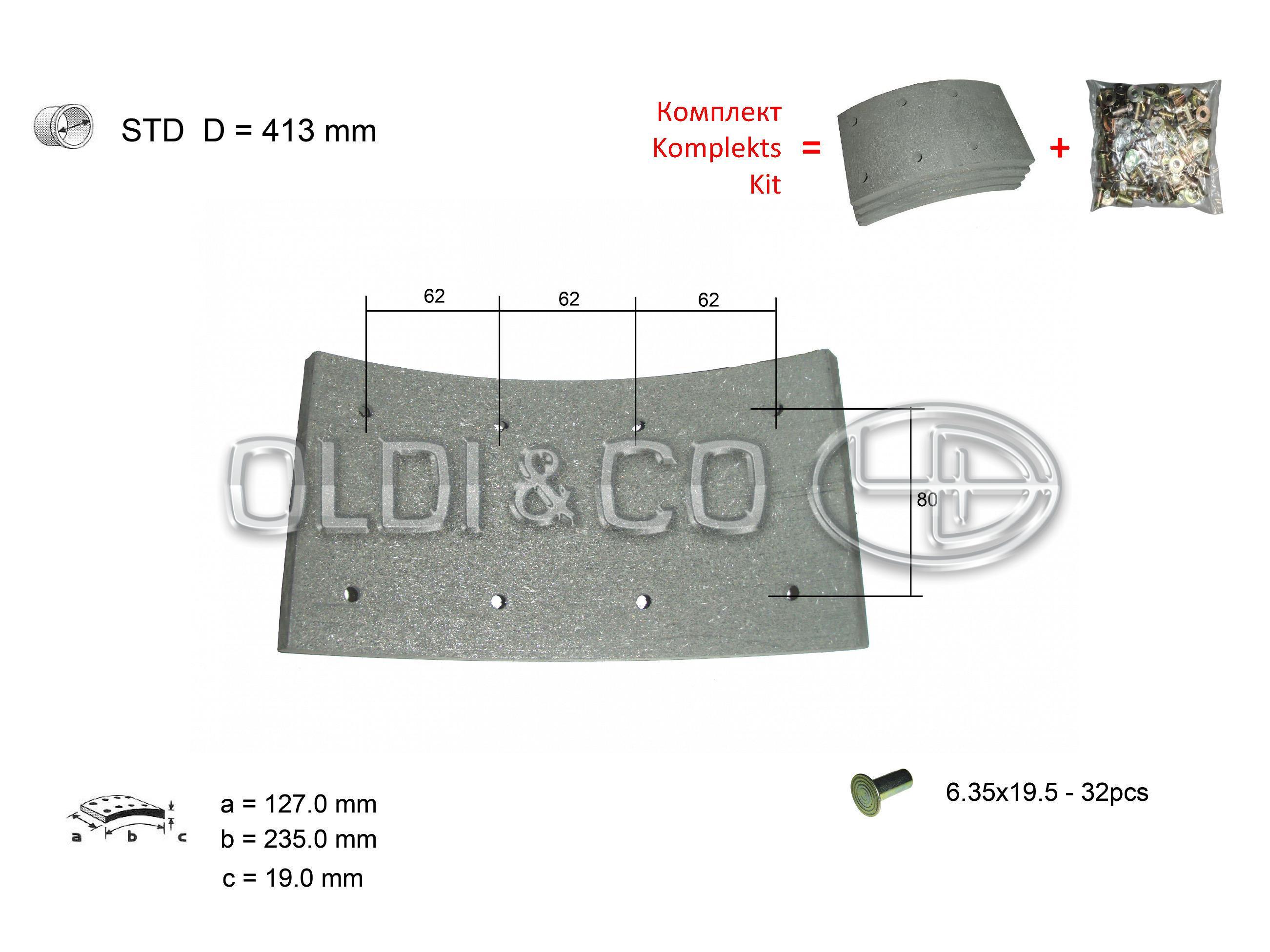

11.037.03577
SCANIA - Series 3, Series 4
Linings, WVA number: 17991
Repair size, mm: STD
Diameter of a drum, mm: 413
Length, mm: 235
Quantity of rivets, pcs.: 32
Thickness, mm: 19.0
Width of a block, mm: 127

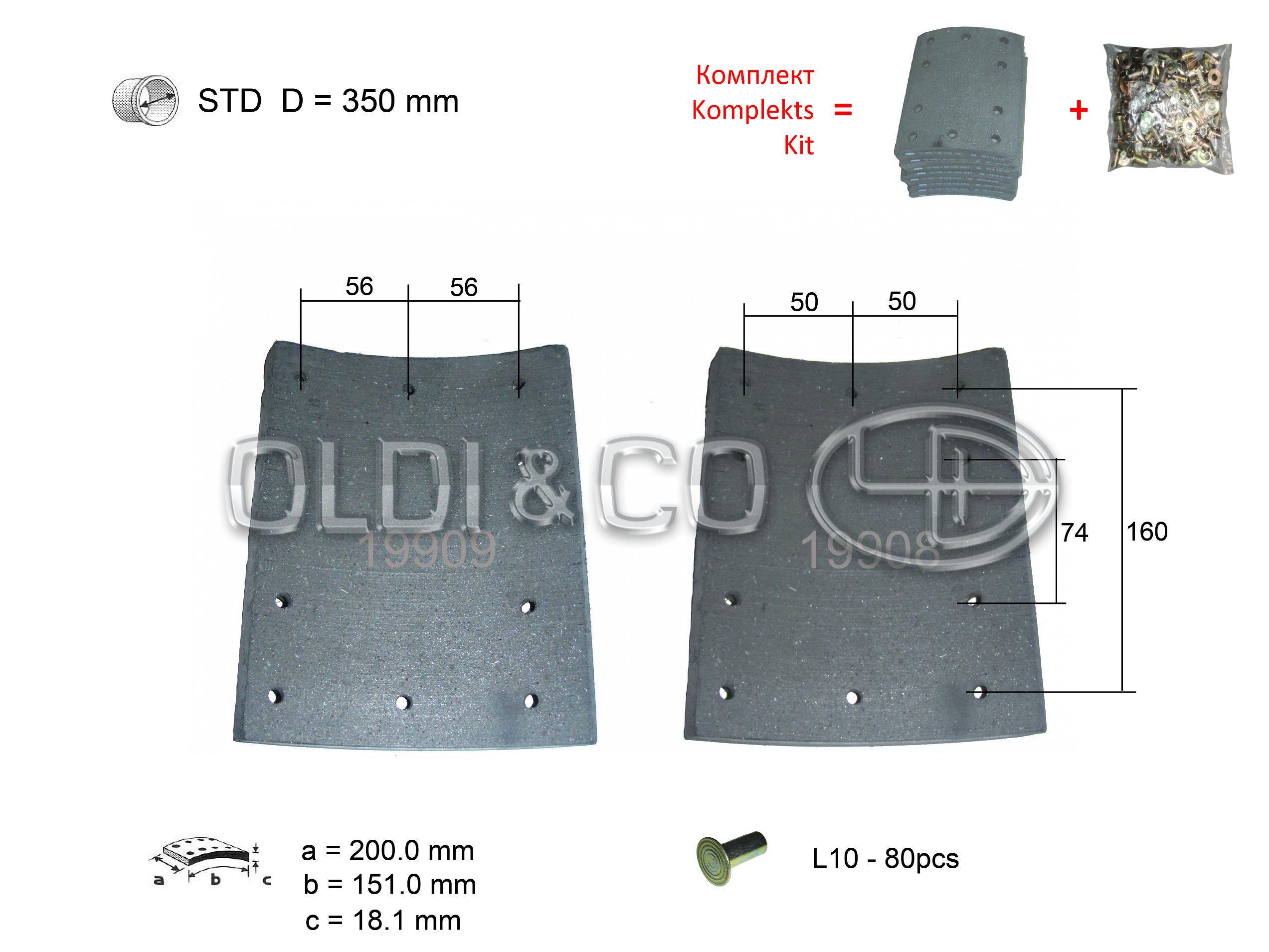

11.037.03578
ROR
Linings, WVA number: 19908
Linings, WVA number: 19909
Repair size, mm: STD
Rivet type: L10
Diameter of a drum, mm: 350
Length, mm: 151
Quantity of rivets, pcs.: 80
Thickness, mm: 18.1
Thickness, mm: 18.8
Width of a block, mm: 200

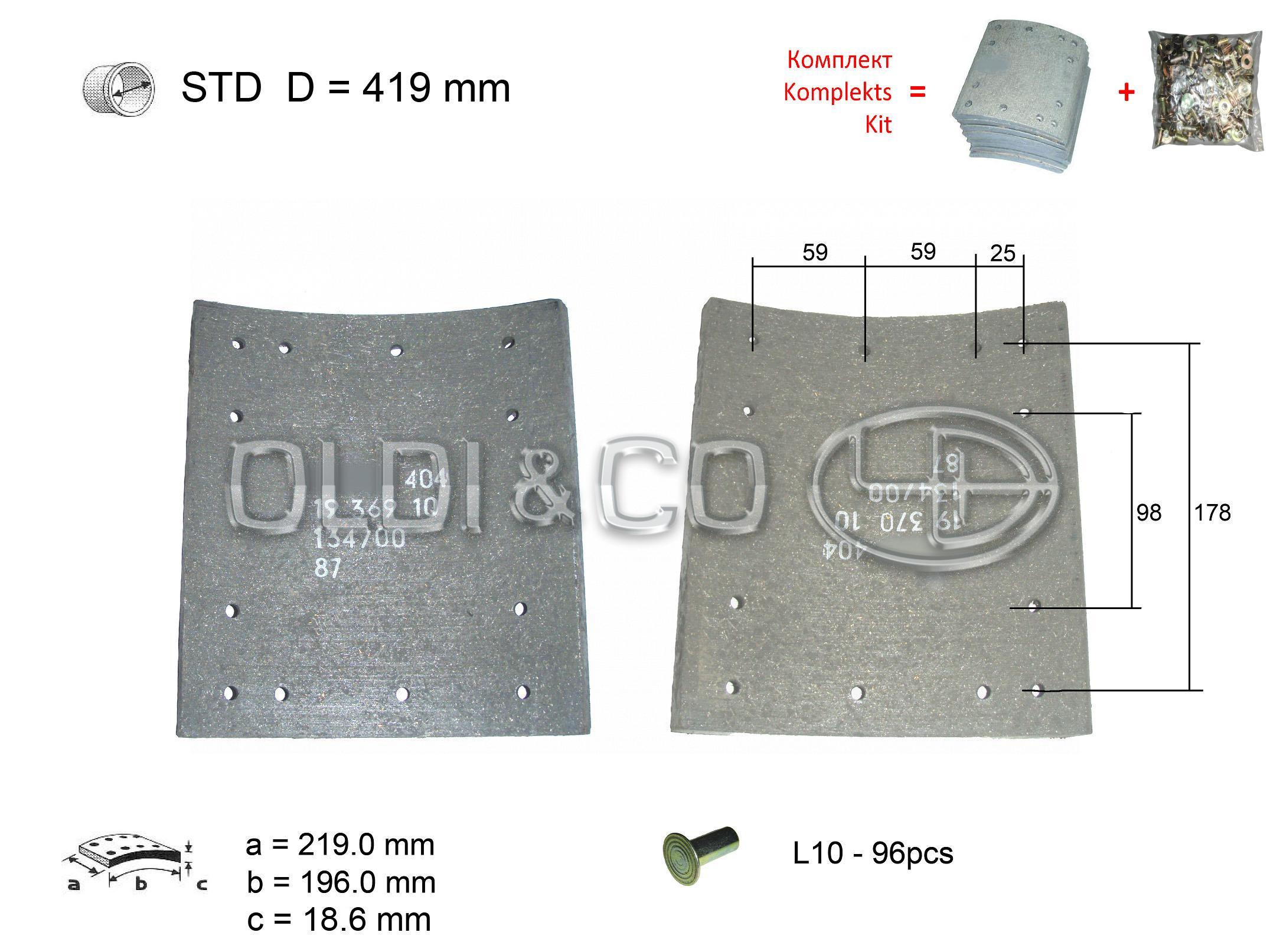

11.037.03641
ROR
Linings, WVA number: 19370
Linings, WVA number: 19369
Repair size, mm: STD
Rivet type: L10
Diameter of a drum, mm: 419
Length, mm: 196
Length, mm: 190
Quantity of rivets, pcs.: 96
Thickness, mm: 18,6
Thickness, mm: 18,5
Width of a block, mm: 219

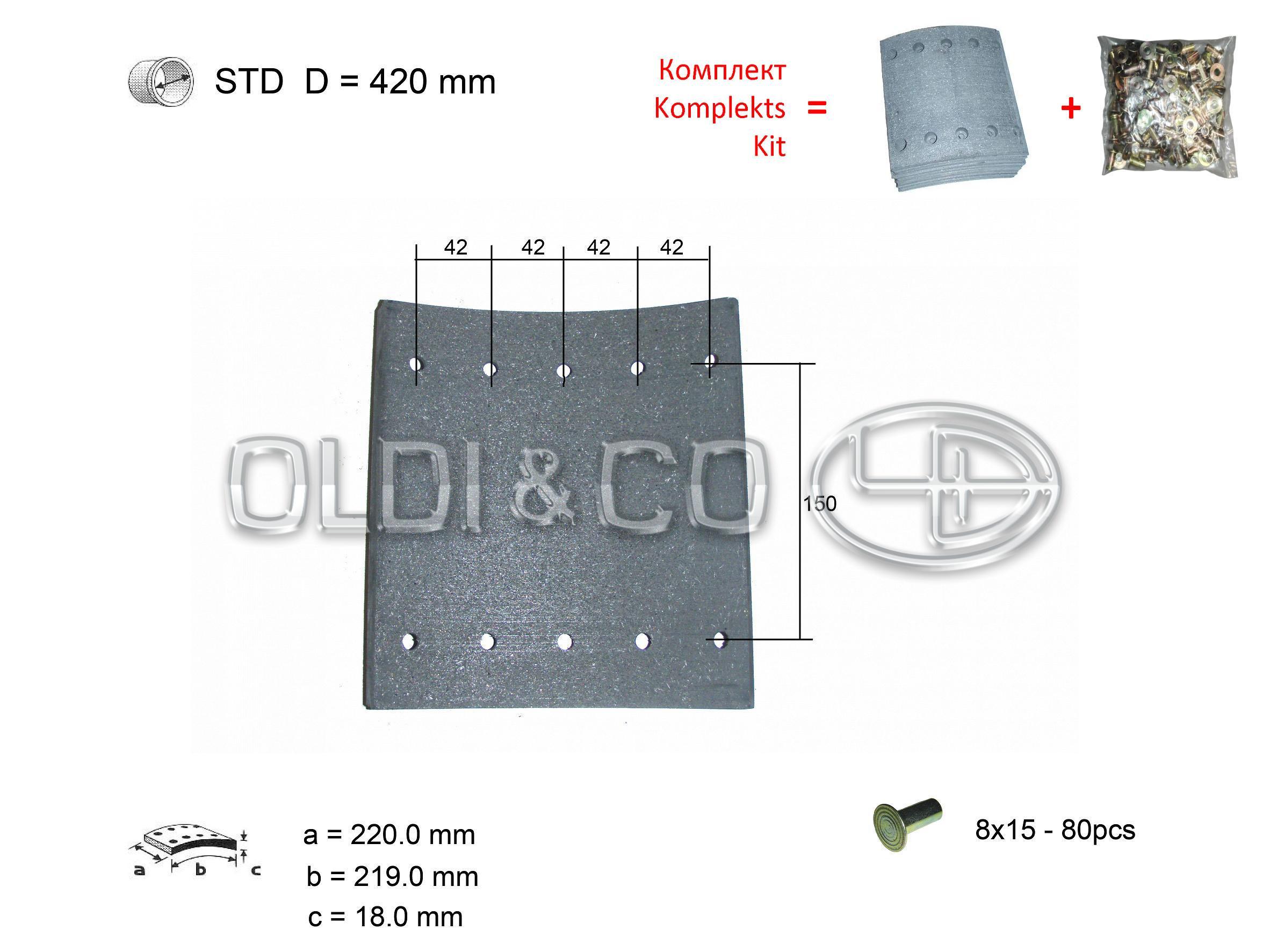

11.037.03642
_TRAILERS
Linings, WVA number: 19825
Repair size, mm: STD
Rivet type: 8x15
Diameter of a drum, mm: 420
Length, mm: 219
Quantity of rivets, pcs.: 80
Thickness, mm: 18.0
Width of a block, mm: 220

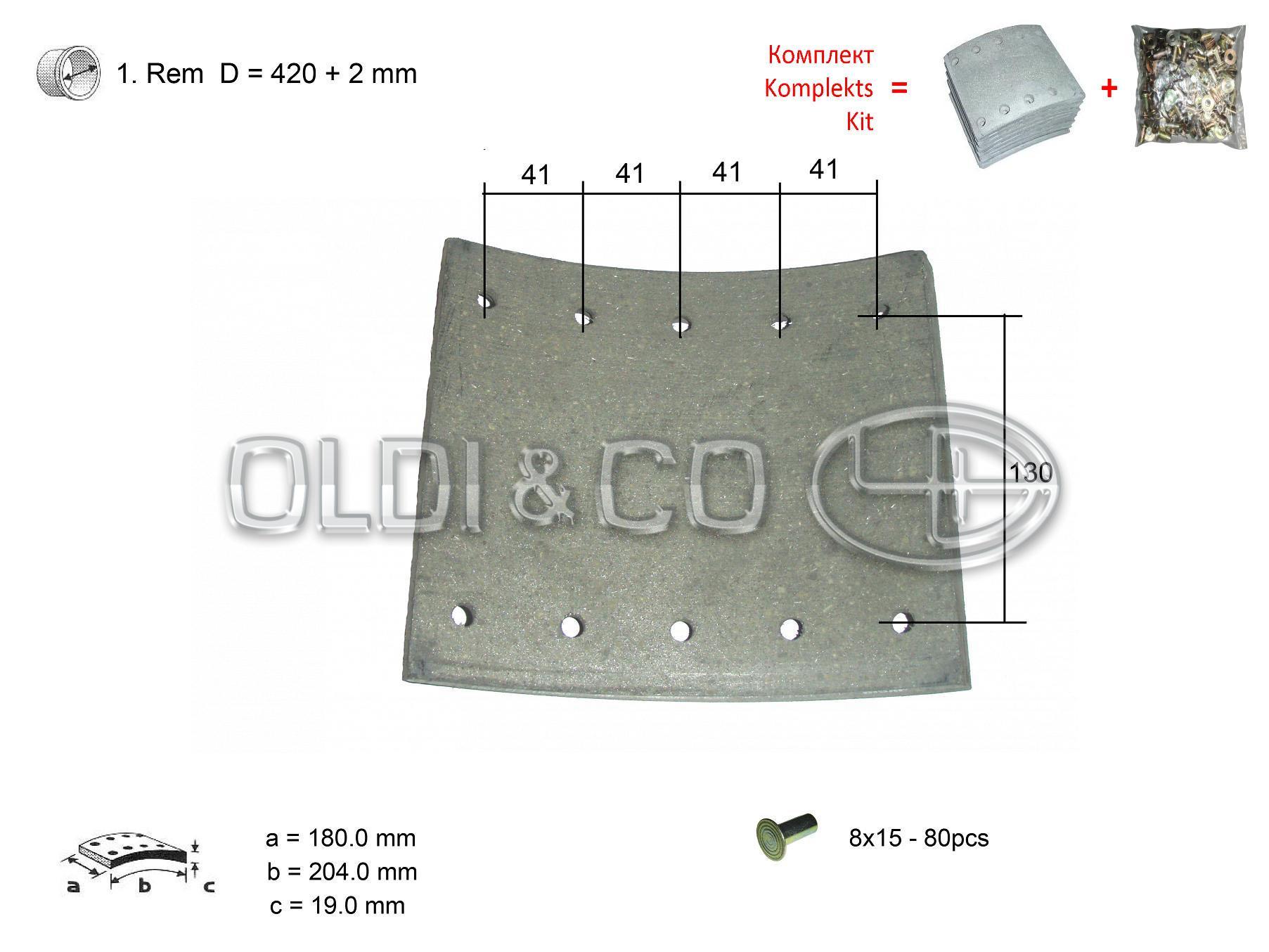

11.037.03708
BPW
KASSBOHRER
RENAULT
SAF
Linings, WVA number: 19032
Repair size, mm: 1 rem
Rivet type: 8x15
Diameter of a drum, mm: 420
Length, mm: 204
Quantity of rivets, pcs.: 80
Thickness, mm: 18.8
Width of a block, mm: 180

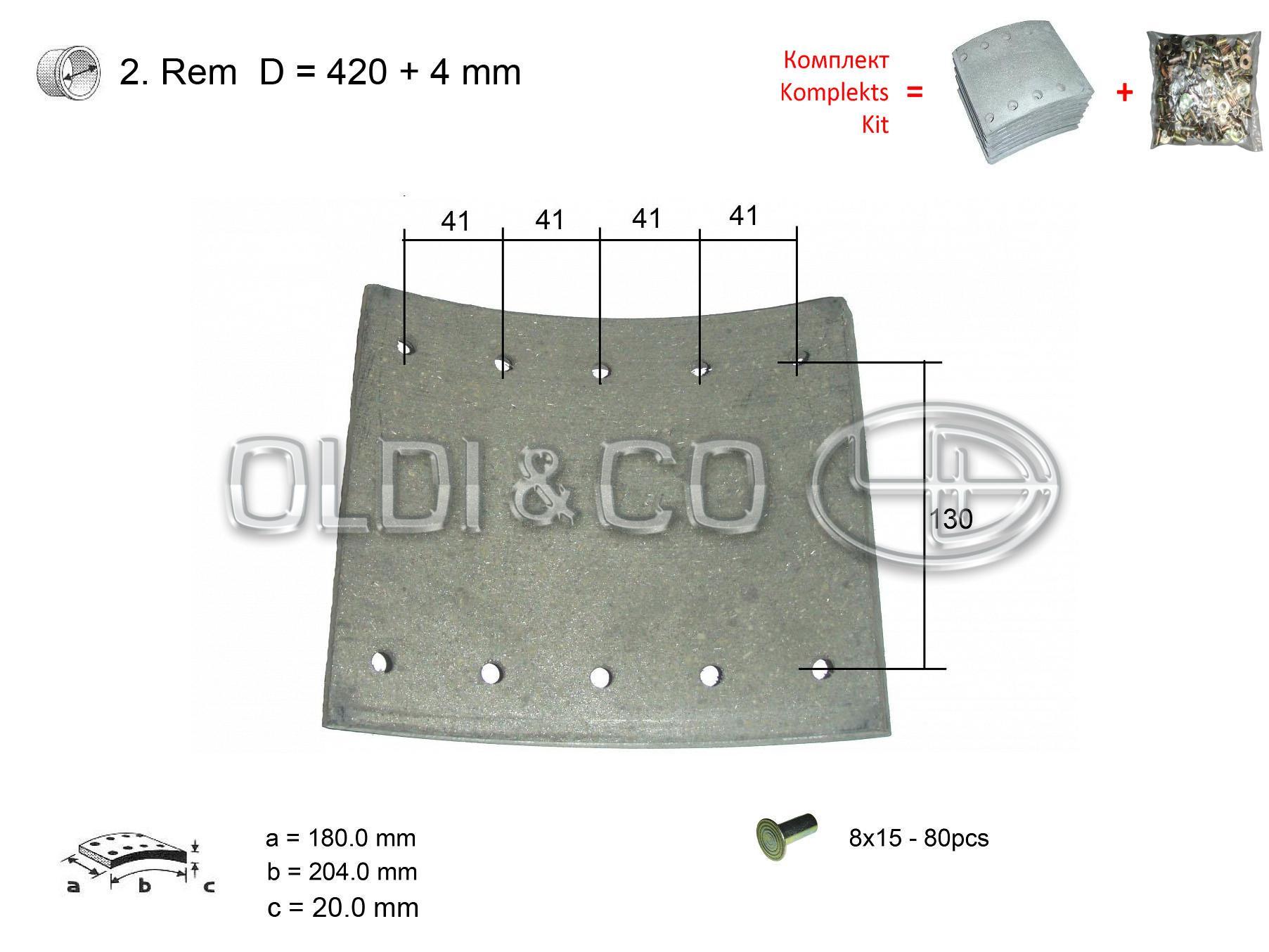

11.037.03709
BPW
KASSBOHRER
SAF
Linings, WVA number: 19032
Repair size, mm: 2 rem
Rivet type: 8x15
Diameter of a drum, mm: 420
Length, mm: 204
Quantity of rivets, pcs.: 80
Thickness, mm: 19.8
Width of a block, mm: 180
